| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,008 pcs
|
9008 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
1,628 pcs
|
1628 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Protection Features | |
| Watchdog Timer |
The Infineon TLE7368-2E is a high-efficiency, next-generation microcontroller power supply system designed for automotive applications using a standard 12V battery. It features a wide battery input voltage range from 4.5V up to 45V and an operating temperature range of -40°C to +150°C.
This device integrates a current-mode Buck converter providing a pre-regulated 5.5V at 2.5A. Post-regulators include LDO1 (5V, 800mA), LDO2 (3.3V or 2.6V, 700mA), and LDO3 control for an external NPN power stage, offering specific voltages like 1.2V for the TLE7368-2E variant. It also includes tracking regulators and a low-current stand-by regulator with selectable outputs of 1.0V or 2.6V.

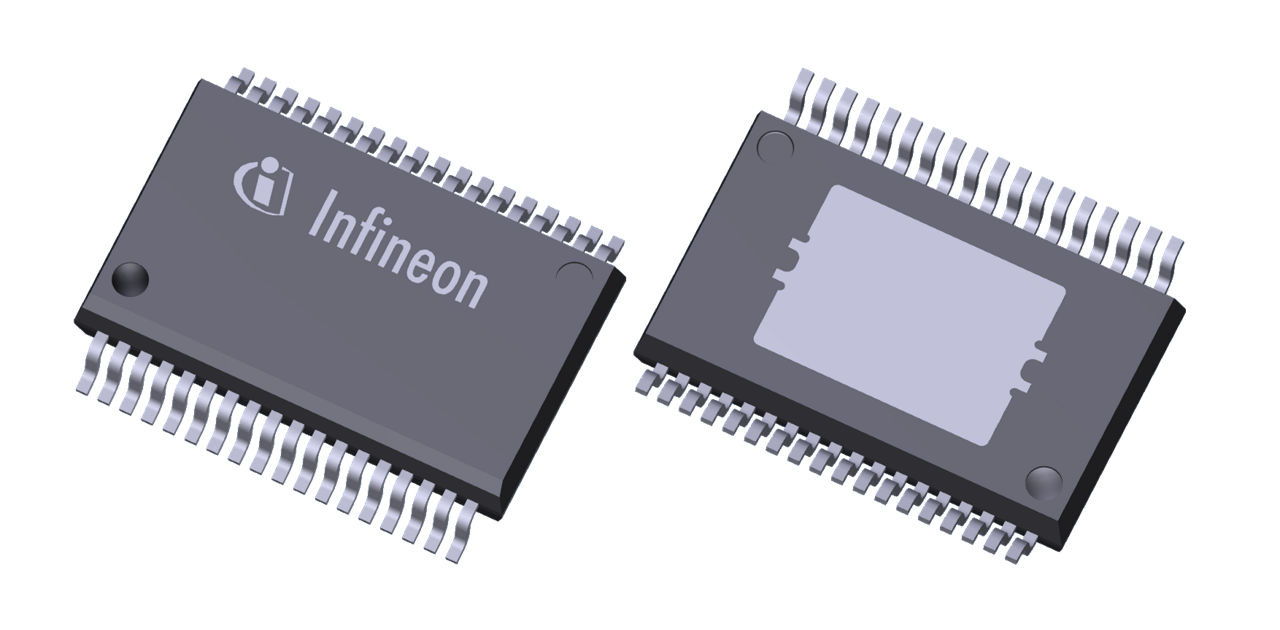

Protection features include overcurrent protection on all regulators, overtemperature shutdown, and undervoltage detection with adjustable reset delay. The TLE7368-2E is supplied in a small exposed pad PG-DSO-36 package, suitable for surface mounting.
Qualified for automotive applications according to AEC-Q100, this power management IC is ideal for supplying and monitoring next-generation 32-bit microcontrollers in demanding automotive environments.
4.5V to 45V.
-40°C to +150°C.
PG-DSO-36 surface mount package.
LDO1: 5V/800mA, LDO2: selectable 3.3V or 2.6V/700mA, LDO3: 1.2V.
Yes, it includes a window watchdog circuit.
Overcurrent protection on all regulators, overtemperature shutdown, and undervoltage detection.
5.5V at 2.5A.
