TLE7274G The Infineon Technologies TLE7274G is a 5V low-drop voltage regulator designed for automotive applications. It offers a 300mA current capability and ultra-low current consumption.
Mfr Part #:

TLE7274G

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE7274G is a 5V low-drop voltage regulator designed for automotive applications. It offers a 300mA current capability and ultra-low current consumption.
✓ Total Stock: 22,600 pcs
$ Price Range: $23.40

TLE7274G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
22,600 pcs
On Request
22600 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE7274G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Consumption
Input Voltage
Junction Temperature
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
Output Voltage
PSRR
Protection Features
Storage Temperature
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

TLE7274G Description

Short technical summary and product information.

The TLE7274G from Infineon Technologies is a monolithic integrated low-drop voltage regulator. It provides a stable 5V output with ±2% precision and can handle load currents up to 300mA. The device features ultra-low current consumption, typically 20µA, making it suitable for applications permanently connected to VBAT.



Designed for the harsh environment of automotive electronics, the TLE7274G is protected against overload, short circuit, and over-temperature conditions. Its sophisticated design ensures stable operation even with ceramic output capacitors as low as 470nF. The regulator operates within a wide input voltage range up to 42V and has a very low-drop voltage.

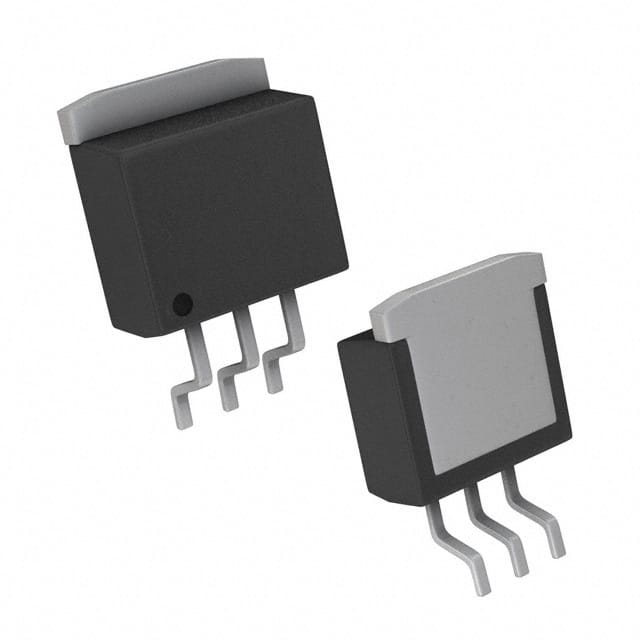

The TLE7274G is available in a TO-263-3-1 (PG-TO263-3-1) package, suitable for surface mounting. Its operating temperature range is -40°C to 150°C, and it includes features like over-current, over-temperature, and short-circuit protection.

TLE7274G Quick Information

Product Type: Voltage Regulator
Canonical Name: TLE7274G 5V Low Drop Voltage Regulator
Subcategory: Power Management

TLE7274G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE7274G Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE7274G Features

  • 5V fixed output voltage with ±2% accuracy.
  • 300mA continuous output current capability.
  • Ultra-low quiescent current of typically 20µA.
  • Short-circuit, over-temperature, and over-current protection.
  • Suitable for automotive electronics applications.

TLE7274G Applications

  • Automotive battery-connected applications.
  • Low-power voltage regulation circuits.
  • Systems requiring stable 5V supply.
  • Harsh automotive environments.

TLE7274G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TLE7274G?

The TLE7274G provides a nominal output voltage of 5V with a precision of ±2%.

What is the maximum output current capability of the TLE7274G?

The TLE7274G can supply a continuous output current of up to 300mA.

What is the quiescent current consumption of the TLE7274G?

The TLE7274G features an ultra-low quiescent current consumption, typically 20µA.

What protection features are included in the TLE7274G?

The TLE7274G includes over-current, over-temperature, and short-circuit protection.

What is the operating temperature range for the TLE7274G?

The TLE7274G operates within a temperature range of -40°C to 150°C.

What package type is the TLE7274G supplied in?

The TLE7274G is supplied in a TO-263-4, D²Pak (3 Leads + Tab), TO-263AA package, suitable for surface mounting.
