| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,800 pcs
|
4800 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies TLE7232GS is a versatile SPI driver IC designed for enhanced relay control and power distribution applications. This component features 8 N-channel outputs configured for low-side switching, capable of handling up to 240mA of current. It operates within a voltage range of 3V to 5.5V and offers a typical on-resistance of 1 Ohm.
The TLE7232GS includes fault protection features such as open load detection and over-temperature protection, enhancing system reliability. It is housed in a compact 24-SSOP package, suitable for surface mount applications. The device operates across a wide temperature range of -40°C to 150°C (TJ), making it suitable for demanding automotive and industrial environments.
With its SPI interface, the TLE7232GS allows for efficient digital control of multiple power outputs. Its general-purpose switch type and robust design make it a suitable choice for various automotive and industrial control systems requiring reliable power switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 5.5V.
The junction temperature range is -40°C to 150°C.

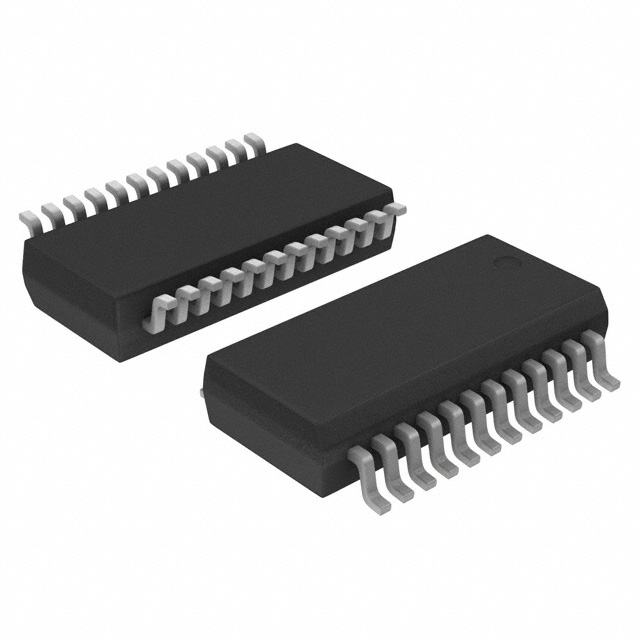

The TLE7232GS is available in a 24-SSOP package (PG-SSOP-24-6).
It has 8 outputs.
It uses an SPI interface.
Open load detection and over-temperature protection are included.
The typical on-resistance is 1 ohm.
