Mfr Part #:

TLE6368R

Mfr Name: NA

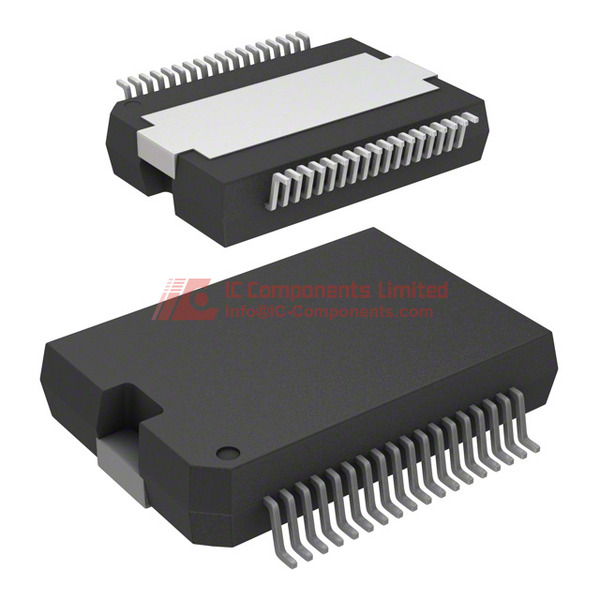

The TLE6368R is a multi-voltage power supply system designed for automotive applications. It offers a wide input voltage range and multiple selectable output voltages.

✓ Total Stock: 787 pcs

TLE6368R Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	787 pcs On Request	787 pcs	On Request	1	On Request	On Request	04+	On Request	On Request

TLE6368R Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NA
Input Voltage	5.5V to 60V
Interface	SPI
Mounting Type	SMD
Package / Case	PG-DSO-36-26

View Similar Products (0)

TLE6368R Description

Short technical summary and product information.

The TLE6368R is a versatile multi-voltage power supply system designed for automotive applications, supporting standard 12V/24V and new 42V power nets. It is intended to supply micro-controller systems requiring different voltage rails such as 5V, 3.3V, and 2.6V.

This device cascades a Buck converter with linear regulators and trackers on a single chip to minimize power dissipation. The step-down converter provides a pre-regulated voltage of 5.5V at 1.5A. Three low-drop linear post-regulators offer selectable output voltages of 5V (800mA), 3.3V (500mA), or 2.6V (350mA). Additionally, six independent voltage trackers follow the 5V regulator, each capable of driving 17mA.

The TLE6368R features a stand-by mode with low current consumption (30µA) for energy saving. It includes undervoltage detection circuits for reset or early warning functions and supports tracker control and diagnosis via SPI. The component is housed in a PG-DSO-36-26 package and is suitable for surface mounting.

Key electrical characteristics include a wide input voltage range from 5.5V to 60V. The system is designed for high efficiency and low power dissipation, making it suitable for high ambient temperature applications.

TLE6368R Quick Information

Product Type: Multi-Voltage Power Supply

Canonical Name: TLE6368R Multi-Voltage Power Supply

Subcategory: Power Management - Specialized

TLE6368R Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TLE6368R Features

Wide input voltage range from 5.5V to 60V.
Multiple selectable output voltages available.
Integrated pre-regulator and post-regulators.
Six independent voltage trackers included.
SPI interface for control and diagnosis.

TLE6368R Applications

Suitable for 12V/24V automotive power nets.
Designed for 42V automotive power nets.
Powers 32-bit microcontroller systems.
Provides supply rails for sensors.

TLE6368R FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TLE6368R?

5.5V to 60V.

What is the pre-regulator output?

5.5V at 1.5A from a step-down converter.

What post-regulator outputs are available?

5V at 800mA, 3.3V or 2.6V at 500mA, and 3.3V or 2.6V at 350mA.

How many voltage trackers does the TLE6368R have?

Six independent voltage trackers, each providing 5V at 17mA.

What is the stand-by current consumption?

30µA maximum.

What interface is used for tracker control?

SPI.

What is the package type?

PG-DSO-36-26, SMD mounting.
