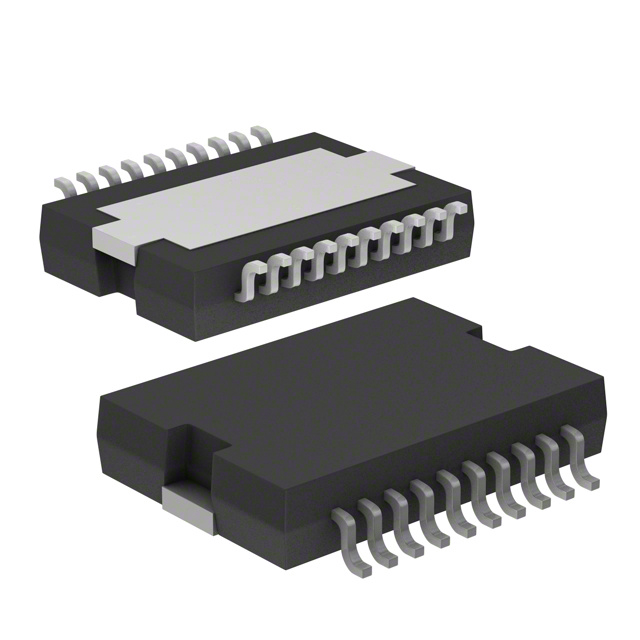

TLE6220GPAUMA2 The Infineon Technologies TLE6220GPAUMA2 is a quad low-side power switch featuring an SPI interface for control and diagnostics. It offers 4 channels with N-channel outputs and a nominal output current of 3A.
Mfr Part #:

TLE6220GPAUMA2

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE6220GPAUMA2 is a quad low-side power switch featuring an SPI interface for control and diagnostics. It offers 4 channels with N-channel outputs and a nominal output current of 3A.
✓ Total Stock: 308 pcs
$ Price Range: $0.32

TLE6220GPAUMA2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
308 pcs
On Request
308 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE6220GPAUMA2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supply Voltage
Switch Type
Voltage
View Similar Products (0)

TLE6220GPAUMA2 Description

Short technical summary and product information.

The Infineon Technologies TLE6220GPAUMA2 is a Smart Quad Low-Side Switch designed for 12V and 24V automotive and industrial applications. It utilizes Smart Power Technology (SPT) and includes a Serial Peripheral Interface (SPI) for data input and diagnostic output.



This device features four open-drain DMOS output stages that can be controlled directly in parallel for PWM applications or serially via the SPI. Key protection functions include short circuit protection, overtemperature protection, and overvoltage protection. The switch operates with a supply voltage range of 4.5V to 5.5V and has a nominal output current of 3A per channel.



Designed for engine management and powertrain systems, the TLE6220GPAUMA2 is suitable for switching solenoids, relays, resistive loads, and injectors. It comes in a PG-DSO-20 package with an exposed pad for enhanced thermal performance and is surface-mounted.



Its features include a low quiescent current, microcontroller-compatible inputs, and electrostatic discharge (ESD) protection. The device is also AEC qualified and RoHS compliant.

TLE6220GPAUMA2 Quick Information

Product Type: Power Distribution Switch
Canonical Name: TLE6220GPAUMA2 Quad Low-Side Switch
Subcategory: Load Drivers

TLE6220GPAUMA2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE6220GPAUMA2 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE6220GPAUMA2 Features

  • Four channel low-side N-channel switch.
  • 3A nominal output current capability.
  • SPI interface for control and diagnostics.
  • Integrated overvoltage and overtemperature protection.
  • Suitable for 12V and 24V systems.

TLE6220GPAUMA2 Applications

  • Ideal for automotive powertrain systems.
  • Controls solenoids and relay loads.
  • Used for injector coil applications.
  • Robotic control system component.

TLE6220GPAUMA2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.5V to 5.5V.

What is the package type?

PG-DSO-20-37 (20-SOIC with exposed pad).

What is the operating temperature range?

-40°C to 150°C.

How many outputs does the TLE6220GPAUMA2 have?

4 outputs.

What is the maximum output current per channel?

3A individually, 1A when all outputs on.

What is the typical on-resistance?

320mOhm.
