TLE5206-2GP

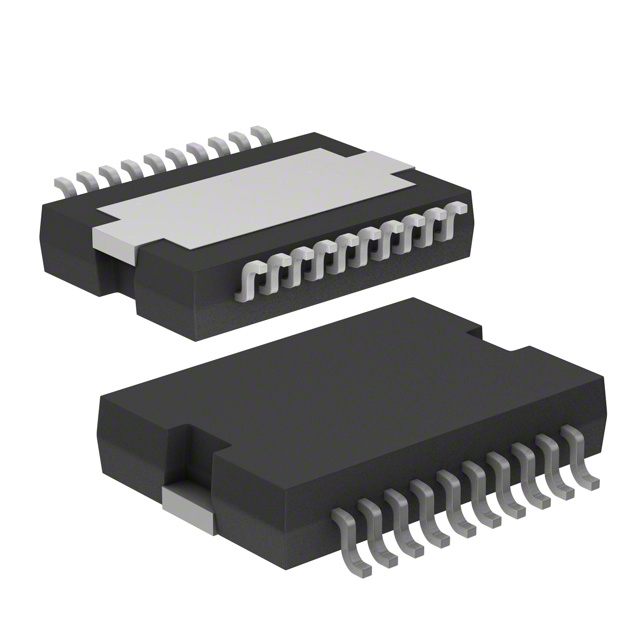

The TLE5206-2GP from Infineon Technologies is a robust H-bridge power IC optimized for DC motor management. It features DMOS output stages and is built using Infineon's SPT process, allowing for integrated bipolar and CMOS control circuitry with DMOS power devices.

This driver IC delivers up to 5A continuous and 6A peak current, making it suitable for demanding motor control applications. It operates across a wide supply voltage range of 5.3V to 40V. Key electrical characteristics include a very low on-resistance of typically 200 mΩ per switch at 25°C, integrated freewheeling diodes, and protection features such as output short-circuit protection, overtemperature protection with hysteresis and diagnosis, short-circuit diagnosis with an open-drain error flag, and undervoltage lockout.

The TLE5206-2GP is housed in a 20-PowerSOIC package (PG-DSO-20-12) and supports surface mount technology. Its wide operating temperature range of -40°C to 150°C (TJ) ensures reliability in various environmental conditions. Control inputs are TTL/CMOS compatible with hysteresis, and the device offers no crossover current.

This AEC qualified component is designed for automotive applications and is RoHS compliant. The integrated freewheeling diodes simplify external circuitry, requiring only a blocking capacitor at the supply voltage.
