The Infineon TLE4998C8 is a programmable linear Hall effect sensor IC designed for high-accuracy angle and position detection in automotive and industrial applications. It features a 16-bit overall resolution and 20-bit digital signal processing (DSP) for precise measurements.
The sensor supports both SPC (Short PWM Code) and SENT (Single Edge Nibble Transmission) protocols, allowing for flexible communication with ECUs. It offers configurable magnetic ranges of ±50 mT, ±100 mT, or ±200 mT and operates with a supply voltage of 4.5-5.5 V, with an extended range of 4.1-16 V.
With a wide operating temperature range of -40°C to 125°C, the TLE4998C8 is suitable for demanding environments. It includes digital temperature and stress compensation, minimal drift over temperature and lifetime, and reverse-polarity and overvoltage protection. The sensor is available in a PG-TDSO-8 package.
Potential applications include robust replacement of potentiometers, linear and angular position sensing, and safety-critical functions such as pedal position, throttle position, and steering torque sensing.
4.5-5.5V (extended 4.1-16V).

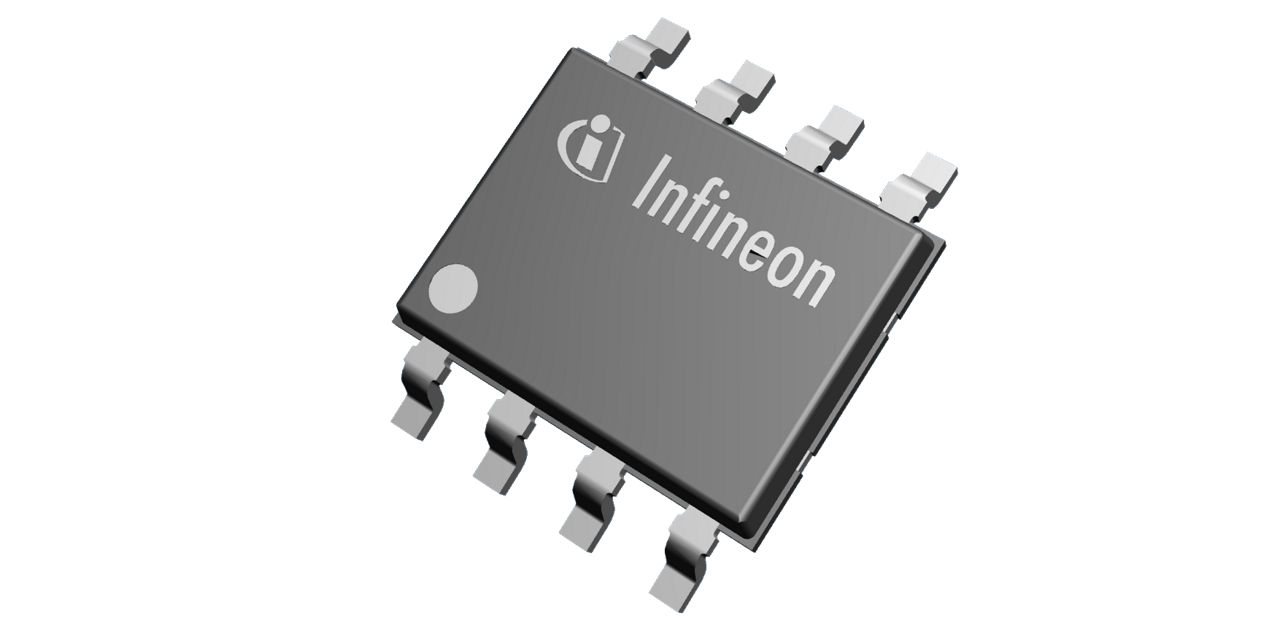

PG-TDSO-8.
-40°C to 125°C.
16-bit overall resolution with 20-bit DSP.
Configurable to ±50 mT, ±100 mT, or ±200 mT.
SPC (Short PWM Code) and SENT (Single Edge Nibble Transmission, SAE J2716).
