TLE4309G The Infineon Technologies TLE4309G is an adjustable linear LED driver capable of up to 500mA constant current. It operates from a 4.5V supply and features PWM dimming and protection circuits.
Mfr Part #:

TLE4309G

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE4309G is an adjustable linear LED driver capable of up to 500mA constant current. It operates from a 4.5V supply and features PWM dimming and protection circuits.
✓ Total Stock: 23,566 pcs
$ Price Range: $0.17

TLE4309G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,566 pcs
On Request
3566 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE4309G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Ambient Temperature
Applications
Current
Dimming
Internal Switch(s)
Mounting Type
Number of Outputs
Operating Temperature
Quiescent Current
Supplier Device Package
Type
Voltage
View Similar Products (0)

TLE4309G Description

Short technical summary and product information.

The TLE4309G from Infineon Technologies is an integrated adjustable constant current source designed for driving loads up to 500 mA. This linear LED driver ensures constant brightness independent of supply voltage or LED forward voltage variations, extending LED lifetime by protecting against overcurrent and overtemperature.



The device operates with a supply voltage range of 4.5 V to 24 V, with a maximum supply voltage of up to 45 V. It features a low dropout voltage and a PWM/ENABLE input for brightness regulation. When disabled, the quiescent current is less than 1 µA. Protection features include overtemperature protection, short circuit proofing, and reverse polarity protection.



The output current level can be adjusted using an external shunt resistor. The TLE4309G is supplied in a surface-mounted PG-TO-263 package, offering excellent thermal resistance. It is suitable for applications with ambient temperatures up to 85 °C.



Key features include adjustable constant current up to 500 mA, a wide operating supply voltage range, low dropout voltage, PWM/ENABLE input, and integrated protection circuits. The device is also RoHS compliant.

TLE4309G Quick Information

Product Type: LED Driver
Canonical Name: TLE4309G Adjustable Linear Low Dropout LED Driver
Subcategory: Linear

TLE4309G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE4309G Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE4309G Features

  • Adjustable constant current up to 500 mA.
  • Wide operating supply voltage range.
  • Low dropout voltage.
  • PWM/ENABLE input for dimming.
  • Integrated overtemperature protection.

TLE4309G Applications

  • Drives high power LEDs.
  • Ensures constant LED brightness.
  • Suitable for general purpose applications.
  • Enables LED brightness regulation.

TLE4309G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the TLE4309G?

The TLE4309G can provide an adjustable constant current up to 500 mA.

What is the operating supply voltage range for the TLE4309G?

The operating supply voltage range is from 4.5 V to 24 V.

What is the maximum supply voltage for the TLE4309G?

The maximum supply voltage is up to 45 V.

What is the operating temperature range of the TLE4309G?

The operating junction temperature range is -40°C to 150°C.

Does the TLE4309G have overtemperature protection?

Yes, the TLE4309G features overtemperature protection.

What type of package is the TLE4309G supplied in?

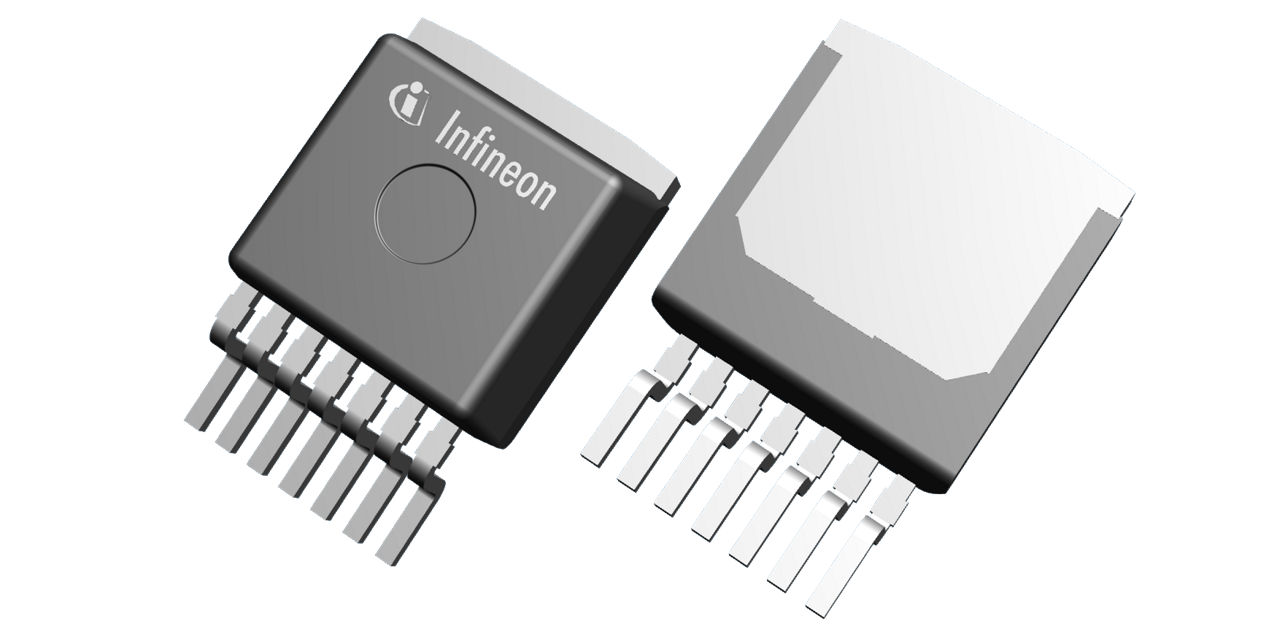

The TLE4309G is supplied in a PG-TO263-7-1 package.
