| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,648 pcs
|
2648 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel |
The Infineon TLE4296G is a monolithic integrated low-drop voltage regulator suitable for general automotive applications. It is designed to supply various loads such as microcontrollers and sensors under severe conditions.
This regulator provides two output voltage versions: 3.3 V and 5.0 V, with an output voltage tolerance of up to ±4%. It can supply an output current of 30 mA and accepts input voltages up to 45 V. The device operates within a wide temperature range of -40°C to +150°C.
Key features include overtemperature protection, short-circuit protection, and reverse polarity proofing. An inhibit function allows the device to be switched to a stand-by mode, reducing current consumption to below 5 µA, thus saving energy. The TLE4296G is qualified for automotive applications according to AEC-Q100.

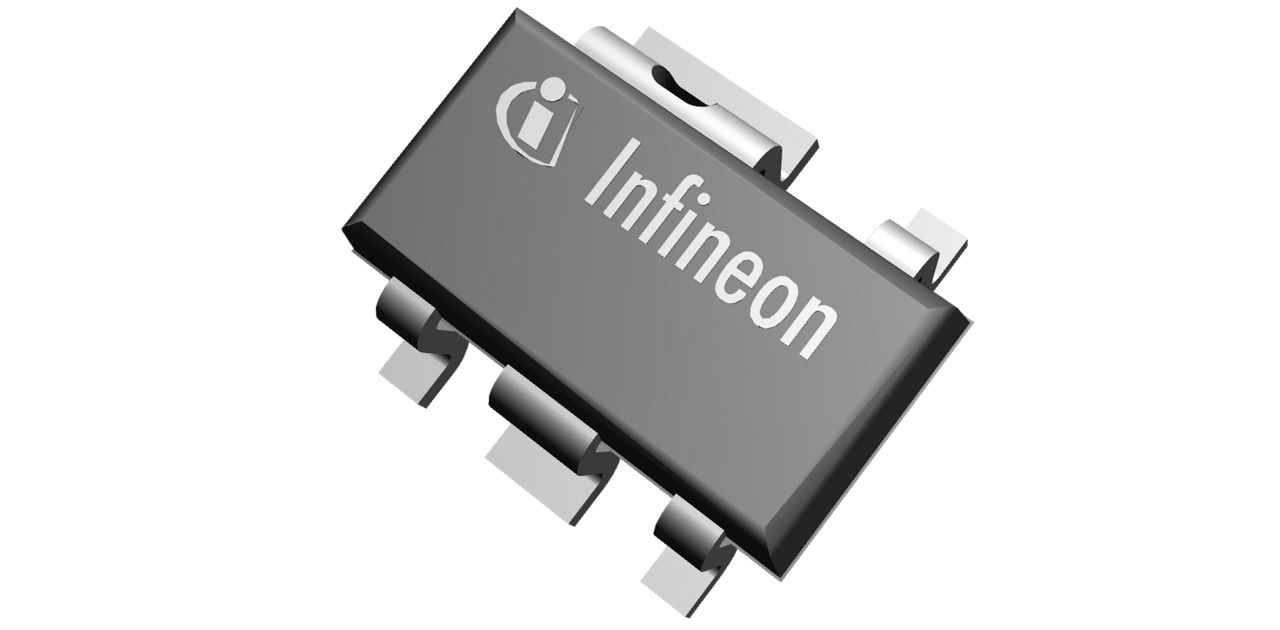

It is housed in a very small and thermally enhanced PG-SCT595-5 SMD package, making it ideal for space-constrained designs. The regulator is also noted as a Green Product, compliant with RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLE4296G is available in two output voltage versions: 3.3 V and 5.0 V.
The TLE4296G can supply an output current of up to 30 mA.
The TLE4296G accepts input voltages up to 45 V.
The TLE4296G operates within a wide temperature range from -40°C to +150°C.
The TLE4296G is supplied in a PG-SCT595-5 SMD package.
Yes, the TLE4296G is qualified for automotive applications according to AEC-Q100.
