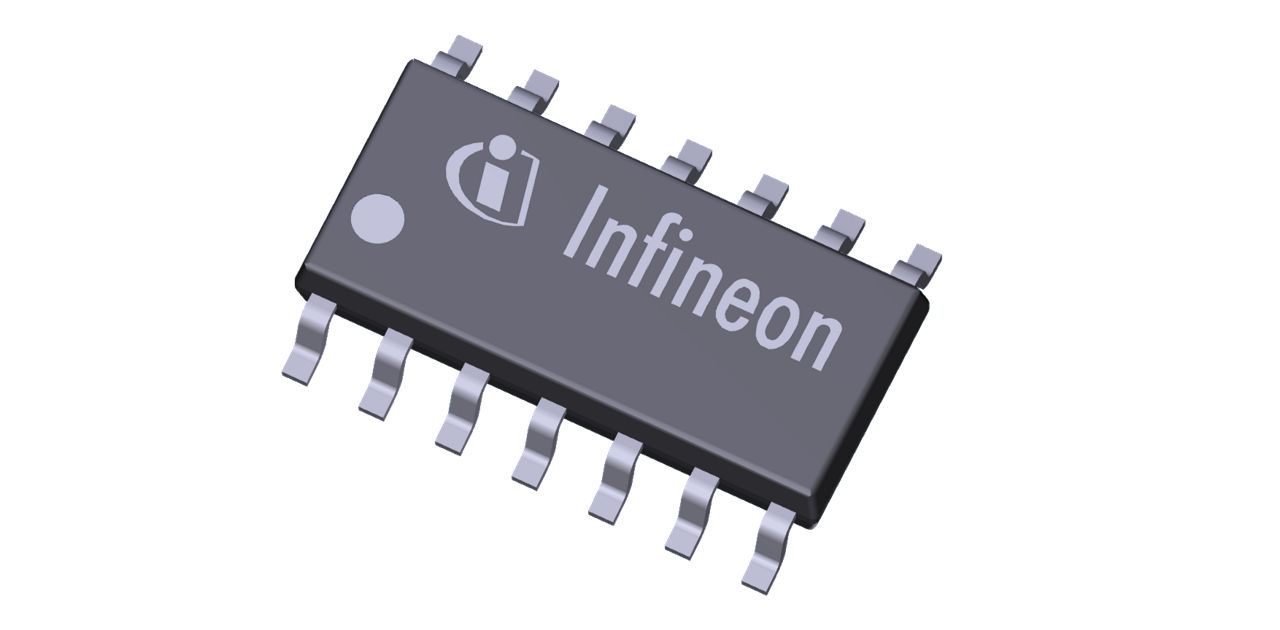

TLE42694GM The Infineon Technologies TLE42694GM is a 5V low drop fixed voltage regulator designed for automotive applications. It provides an output current up to 150 mA.
Mfr Part #:

TLE42694GM

Available from 3 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE42694GM is a 5V low drop fixed voltage regulator designed for automotive applications. It provides an output current up to 150 mA.
✓ Total Stock: 23,604 pcs

TLE42694GM Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
20,092 pcs
On Request
20092 pcs On Request 1 On Request On Request 1402+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 15+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,012 pcs
On Request
1012 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE42694GM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Halogen Free
Industrial Grade
Input Voltage
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Output Current
Output Voltage
Package / Case
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

TLE42694GM Description

Short technical summary and product information.

The Infineon Technologies TLE42694GM is a monolithic integrated low dropout voltage regulator specifically designed for automotive applications. It regulates an input voltage up to 45V to a stable 5.0V output voltage, capable of driving loads up to 150 mA.



Key features include output current limitation, overtemperature protection, and reverse polarity protection. It also offers power-on and undervoltage reset with programmable delay time, and an adjustable reset threshold. The device operates within a wide temperature range of -40°C to 150°C, making it suitable for demanding automotive environments.



This regulator is available in a PG-DSO-14 package and is qualified for automotive applications according to AEC-Q100/101 standards. Its design incorporates integrated pull-up resistors at logic outputs, and it is described as a Green Product (RoHS compliant).



Applications include general automotive electronics where a reliable and stable 5V supply is required.

TLE42694GM Quick Information

Product Type: Linear Voltage Regulator
Series: TLE42694
Canonical Name: TLE42694GM 5V Low Drop Fixed Voltage Regulator
Subcategory: Linear

TLE42694GM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TLE42694GM Features

  • 5V fixed output voltage regulator
  • Up to 150 mA output current
  • Wide -40°C to 150°C temperature range
  • Automotive qualified AEC-Q100/101
  • Integrated protection features

TLE42694GM Applications

  • General automotive applications
  • Power supply for electronic control units
  • Low power automotive systems
  • Sensor power regulation

TLE42694GM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TLE42694GM?

The output voltage is 5 V.

What is the operating temperature range?

-40°C to 150°C.

What is the package type?

PG-DSO-14.

What is the input voltage range?

-42 V to 45 V.

What is the maximum output current?

150 mA.

What is the reset threshold?

Typically 4.65 V, adjustable with an external resistor divider.
