Mfr Part #:

TLE4266-2G

Mfr Name: Infineon

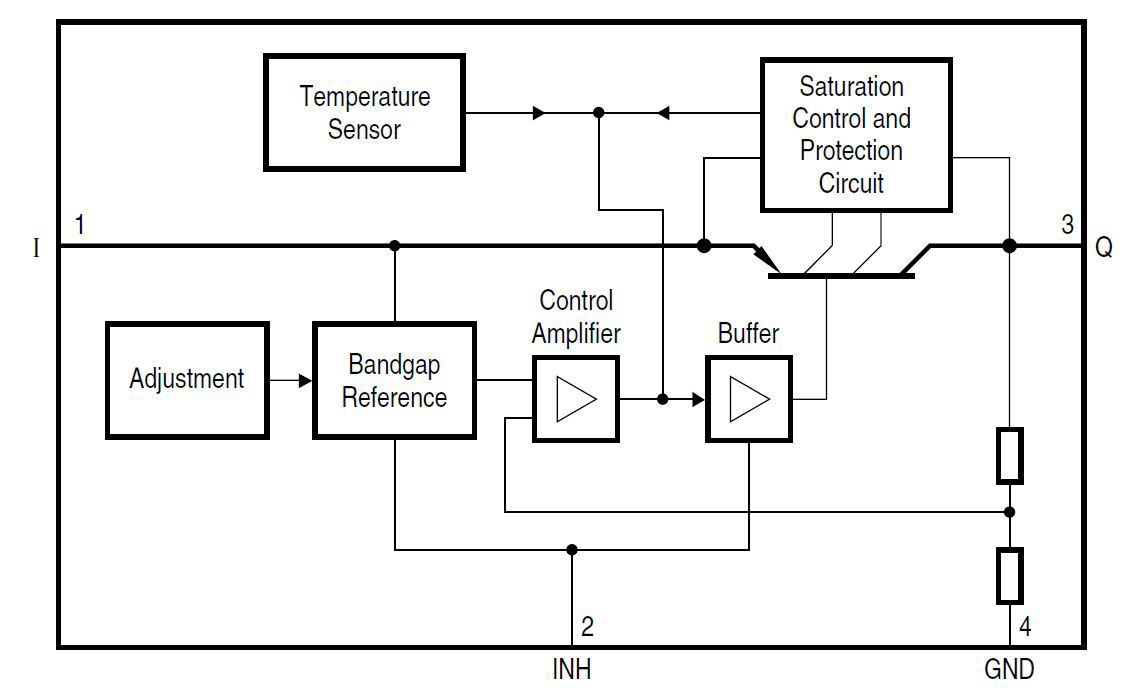

The Infineon TLE4266-2G is a low-drop fixed voltage regulator designed for automotive applications. It offers a 150 mA current capability and features overtemperature and reverse polarity protection.

✓ Total Stock: 78 pcs

$ Price Range: $0.28

TLE4266-2G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	78 pcs On Request	78 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TLE4266-2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Input Voltage	45 V
Mounting Type	Surface Mount
Operating Temperature	-40°C to 150°C
Output Voltage	5 V
Protection Features	Overtemperature, Reverse Polarity, Overload, Short-Circuit

View Similar Products (0)

TLE4266-2G Description

Short technical summary and product information.

The Infineon TLE4266-2G is a monolithic integrated low-drop fixed voltage regulator capable of supplying loads up to 150 mA. It is specifically designed for automotive electronics, offering robust protection against overloads, short-circuits, and overtemperature conditions. The device is available in a fixed output voltage of either 5.0 V or 3.3 V, with an output voltage tolerance of ±2% or ±3% depending on the specific version and load conditions.

This regulator features a very low quiescent current, consuming less than 1 µA in OFF mode and 40 µA in ON mode, making it ideal for applications requiring minimal power consumption. It operates over a wide temperature range from -40°C to 150°C and includes an inhibit function for on/off control. The TLE4266-2G is supplied in a compact PG-SOT223-4 surface-mount package.

Its suitability for automotive applications is further validated by product qualification according to AEC-Q100/101 standards. The device can accept an input voltage up to 45 V, providing a stabilized output for microprocessor systems and other sensitive electronics under demanding automotive environments.

TLE4266-2G Quick Information

Product Type: Low Drop Voltage Regulator

Series: TLE4266-2

Canonical Name: Infineon TLE4266-2G Low Drop Voltage Regulator

Subcategory: Linear

TLE4266-2G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TLE4266-2G Estimated Pricing

Qty	Low	High
1+	$0.28	$0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE4266-2G Features

Fixed 5.0 V or 3.3 V output voltage.
150 mA output current capability.
Very low quiescent current consumption.
Overtemperature and reverse polarity protection.
Suitable for automotive applications.

TLE4266-2G Applications

Provides stable power for automotive sensor modules.
Supplies regulated voltage to microcontroller peripheral circuits.
Enables low-power operation in battery-driven devices.
Protects sensitive electronics from reverse polarity events.
Facilitates compact PCB layouts using surface mount packages.

TLE4266-2G FAQs

6 frequently asked questions generated from this part’s specifications.

What output voltage options are available for the TLE4266-2G?

The device is available in fixed 5.0 V or 3.3 V output versions.

What package type does the TLE4266-2G use?

It utilizes a PG-SOT223-4 surface-mount package.

What is the operating temperature range for this component?

The component operates reliably from -40°C to 150°C.

What is the maximum input voltage supported by the regulator?

The regulator supports a maximum input voltage of 45 V.

Does the TLE4266-2G feature an inhibit control pin?

Yes, applying a high level to the inhibit pin switches the regulator on.

Which protection mechanisms are built into the device?

It includes overtemperature, reverse polarity, overload, and short-circuit protection.
