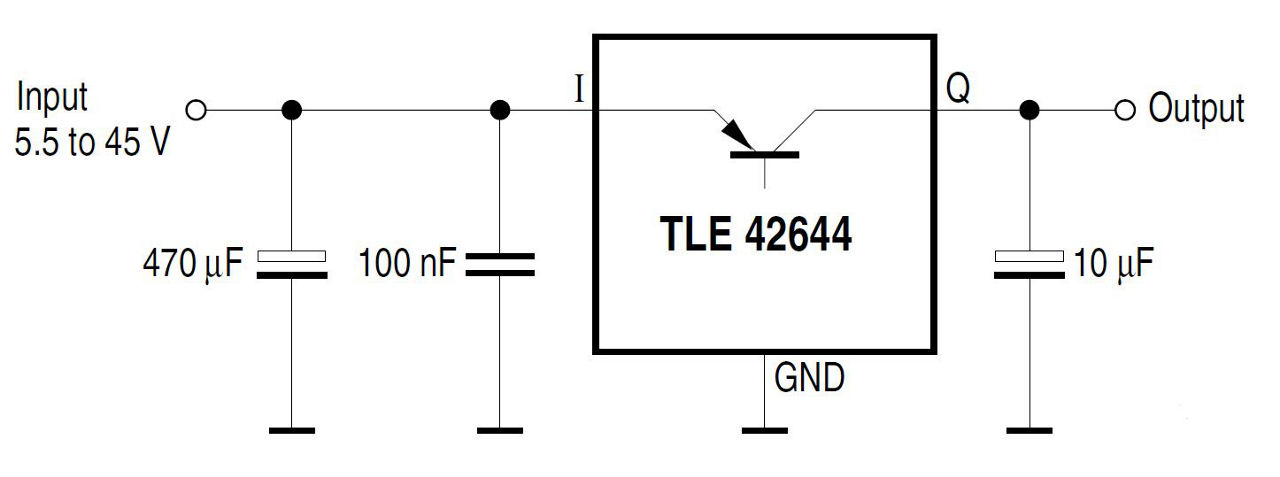

TLE42644G The Infineon TLE42644G is a low dropout fixed voltage regulator providing a stable 5V output. It is designed for automotive applications requiring low quiescent current.
Mfr Part #:

TLE42644G

Available from 3 distributors
Mfr Name: Infineon
Infineon
The Infineon TLE42644G is a low dropout fixed voltage regulator providing a stable 5V output. It is designed for automotive applications requiring low quiescent current.
✓ Total Stock: 9,036 pcs

TLE42644G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,300 pcs
On Request
7300 pcs On Request 1 On Request On Request 2018 On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,077 pcs
On Request
1077 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
659 pcs
On Request
659 pcs On Request 1 On Request On Request 1702+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE42644G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Consumption
Input Voltage
Mounting Type
Operating Temperature
Package / Case
View Similar Products (0)

TLE42644G Description

Short technical summary and product information.

The Infineon TLE42644G is a monolithic integrated low dropout fixed voltage regulator designed for load currents up to 100 mA. It provides a regulated 5V output with an accuracy of ±3% for currents up to 100 mA, and ±2% for currents up to 50 mA. The device features very low current consumption, typically 40 µA, making it suitable for applications requiring very low standby currents, such as those with a permanent connection to a vehicle's battery.



Designed for the harsh environment of automotive applications, the TLE42644G includes protection against overload, short-circuit, and overtemperature conditions. It operates over a wide temperature range from -40°C to +150°C and is qualified for automotive applications according to AEC-Q100.



The TLE42644G is available in a small PG-SOT223-4 surface-mounted package. It is pin-compatible with TLE4264-2G and TLE4264G, offering a direct replacement option with reduced quiescent current.

TLE42644G Quick Information

Product Type: Linear Voltage Regulator
Series: TLE42644
Canonical Name: TLE42644G Low Dropout Fixed Voltage Regulator
Subcategory: Power Management ICs

TLE42644G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE42644G Features

  • Provides a stable 5V output voltage.
  • Supports output currents up to 100 mA.
  • Features very low quiescent current.
  • Designed for harsh automotive environments.
  • Available in a PG-SOT223-4 package.

TLE42644G Applications

  • Suitable for general automotive applications.
  • Ideal for low standby current needs.
  • Can be used in battery-connected systems.
  • Provides stabilized 5V power.

TLE42644G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the TLE42644G?

-40°C to +150°C.

What is the package type of the TLE42644G?

PG-SOT223-4 surface mount package.

What is the output voltage accuracy of the TLE42644G?

±2% up to 50mA and ±3% up to 100mA.

Does the TLE42644G have overtemperature protection?

Yes, it includes overtemperature shutdown.

What is the quiescent current of the TLE42644G?

Typical 40 µA.

What is the maximum input voltage for the TLE42644G?

Up to 45V.

Does the TLE42644G have reverse polarity protection?

Yes, it includes reverse polarity protection.
