| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,184 pcs
|
8184 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,889 pcs
|
1889 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,150 pcs
|
1150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,086 pcs
|
1086 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Current | |
| Storage Temperature | |
| Tape & Reel |

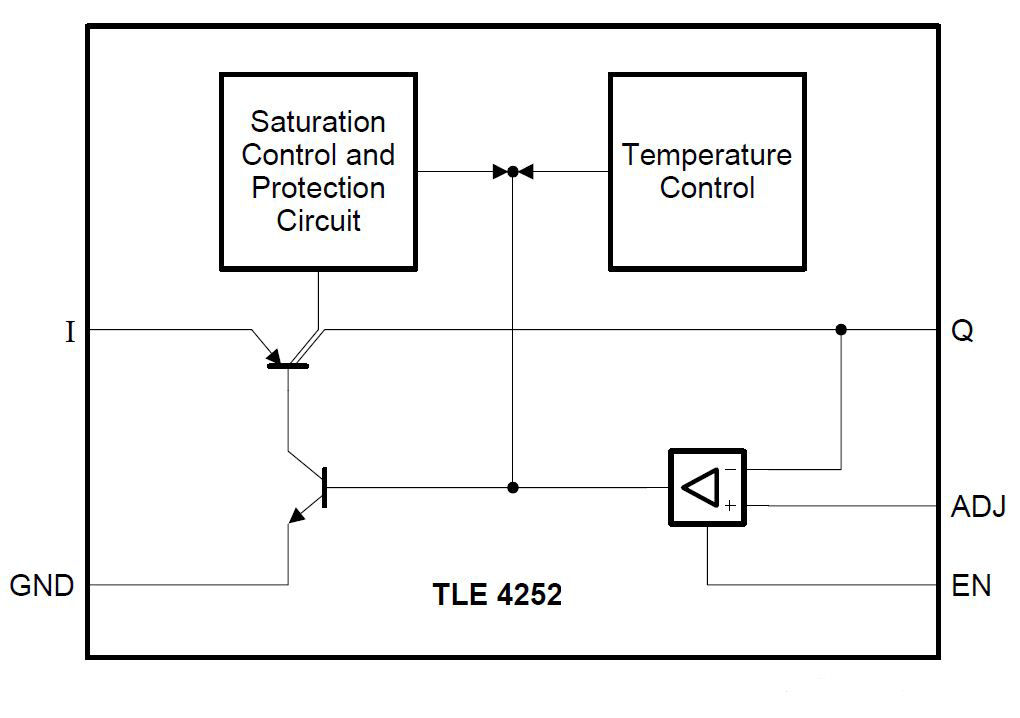

The Infineon TLE4252D is a monolithic integrated low-drop voltage tracking regulator in a compact PG-TO252-5 SMD package. It is specifically designed for supplying off-board systems in automotive applications, such as sensors in engine management systems, under demanding conditions.
Key features include an output tracking tolerance to reference of ≤ ±0.2%, allowing for high-precision voltage replication. The output voltage can be adjusted down to 1.5 V and can supply loads up to 250 mA. The device operates over a wide voltage range up to 40 V and a temperature range from -40°C to 150°C.
For enhanced reliability in automotive environments, the TLE4252D is equipped with protection functions against reverse polarity and short circuits to GND and battery. It also includes overtemperature protection. An enable function and a very low current consumption in OFF mode make it suitable for low-power battery applications.
Product validation is according to AEC-Q100, qualifying it for automotive applications. The regulator is also a Green Product, compliant with RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output tracking tolerance to reference is ±0.2%.
The output voltage can be adjusted down to a minimum of 1.5 V.
The TLE4252D can supply an output current of up to 250 mA.
The device operates over a wide range, up to 40 V.
The operating temperature range is from -40°C to 150°C.
Yes, the output is protected against short circuit to GND and battery.
Yes, the TLE4252D is qualified for automotive applications according to AEC-Q100.
