The TLE4206-2G from Infineon is a protected H-Bridge Driver built using bipolar high voltage power technology. It is optimized for automotive headlight beam control and industrial servo control applications. The device delivers up to 0.8 A continuous output current with a typical total saturation voltage of 1.2 V at 25°C for 0.4 A.
Key features include output protection against short circuits, overtemperature protection with hysteresis, and over/undervoltage lockout. It also offers internal clamp diodes and enhanced power packages. The servo-loop parameters such as hysteresis, deadband, and angle amplification are programmable with external resistors.

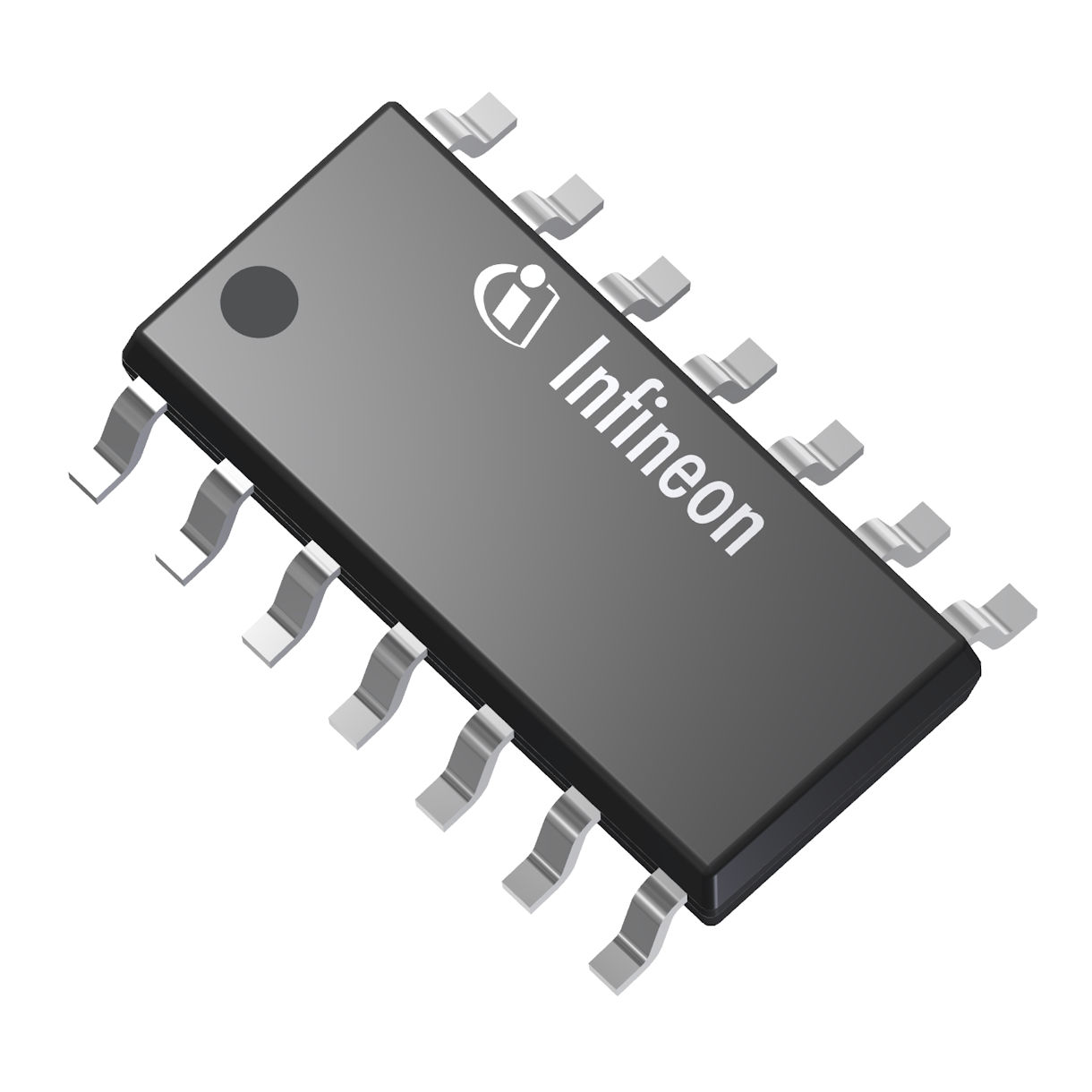

The TLE4206-2G is supplied in a PG-DSO-14 package, designed to save PCB space and costs. It is AEC Qualified and a Green Product (RoHS compliant).
In fault conditions like short circuit to GND, short circuit to supply voltage, or a broken wire, the TLE4206-2G immediately stops the motor in a brake condition. The RANGE input features hysteresis for reliable de-activation under critical application conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLE4206-2G delivers up to 0.8A continuous output current.
The typical total saturation voltage is 1.2V at 25°C for 0.4A.
The maximum supply voltage (VS) is 45V.
The TLE4206-2G is supplied in a PG-DSO-14 package.
