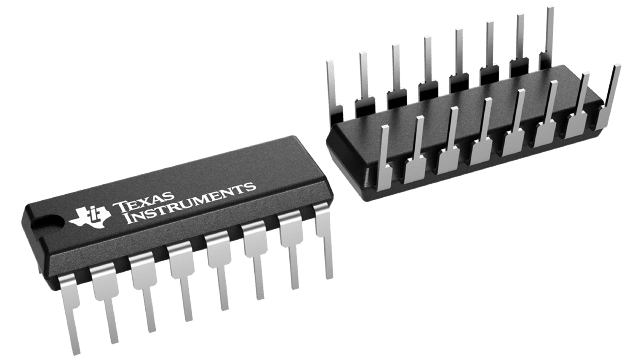

TLE2301INE The Texas Instruments TLE2301INE is a power operational amplifier designed for high-current applications. It offers a 1A output current and a 3-state output mode.
Mfr Part #:

TLE2301INE

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLE2301INE is a power operational amplifier designed for high-current applications. It offers a 1A output current and a 3-state output mode.
✓ Total Stock: 14,400 pcs
$ Price Range: $3.98

TLE2301INE Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,068 pcs
On Request
9068 pcs On Request 1 On Request On Request 19 On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
4,475 pcs
On Request
4475 pcs On Request 1 On Request On Request 07+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
857 pcs
On Request
857 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE2301INE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Architecture
Automotive Grade
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Number of Channels
Operating Temperature
Output Current
Output Type
Slew Rate
Storage Temperature
Tape & Reel
View Similar Products (0)

TLE2301INE Description

Short technical summary and product information.

The TLE2301INE from Texas Instruments is a power operational amplifier built on the Excalibur process. It delivers a high output current of 1A, making it suitable for demanding applications such as mains-based telemetering modems, motor drivers, and audio circuits.



Key electrical characteristics include a gain-bandwidth product of 8 MHz and a high slew rate of 14 V/µs. The device also features low total harmonic distortion of less than 0.08% and a wide supply voltage range from 9V to 40V. The TLE2301INE includes a 3-state output mode for driving the output stage into a high-impedance state, which also reduces supply current.



This operational amplifier operates within a temperature range of -40°C to 85°C. It is housed in a 16-pin PDIP (NE) package, with dimensions of 19.8 mm x 9.14 mm. The combination of high output drive, 3-state capability, and robust performance makes the TLE2301INE a versatile choice for various high-current signal driving tasks.

TLE2301INE Quick Information

Product Type: Power Operational Amplifier
Series: TLE2301
Canonical Name: TLE2301 Power Operational Amplifier
Subcategory: Power Op Amps

TLE2301INE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE2301INE Estimated Pricing

Qty Low High
1+ $3.98 $3.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE2301INE Features

  • Delivers 1A minimum output current.
  • Features 8 MHz gain-bandwidth product.
  • Achieves 14 V/µs slew rate.
  • Includes 3-state output capability.
  • Operates from -40°C to 85°C.

TLE2301INE Applications

  • Ideal for mains-based telemetering modems.
  • Suitable for motor driver circuits.
  • Used in audio amplifier applications.
  • Applicable for signalling transformer drivers.

TLE2301INE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the typical output current of the TLE2301INE?

The typical output current (Iout) for the TLE2301INE is 1 A.

What is the gain-bandwidth product of the TLE2301INE?

The typical gain-bandwidth product (GBW) for the TLE2301INE is 8 MHz.

What is the slew rate of the TLE2301INE?

The typical slew rate for the TLE2301INE is 14 V/µs.

What is the operating temperature range for the TLE2301INE?

The TLE2301INE operates within a temperature range of -40°C to 85°C.

What package type is the TLE2301INE supplied in?

The TLE2301INE is supplied in a 16-pin PDIP (NE) package.

What is the total supply voltage range for the TLE2301INE?

The TLE2301INE has a minimum total supply voltage of 9 V and a maximum of 40 V.

Does the TLE2301INE have a 3-state output?

Yes, the TLE2301INE features 3-state outputs.
