| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,415 pcs
|
5415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Style | |
| Number of Channels | |
| Number of Circuits | |
| Number of Pins | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Slew Rate | |
| Supply Current |
The Texas Instruments TLE2072AID is a dual JFET-input operational amplifier from the Excalibur process family. It offers significantly improved bandwidth and slew rate compared to older BiFET families. This device features a 9.4MHz gain bandwidth product and a 40V/µs slew rate, making it suitable for demanding applications.

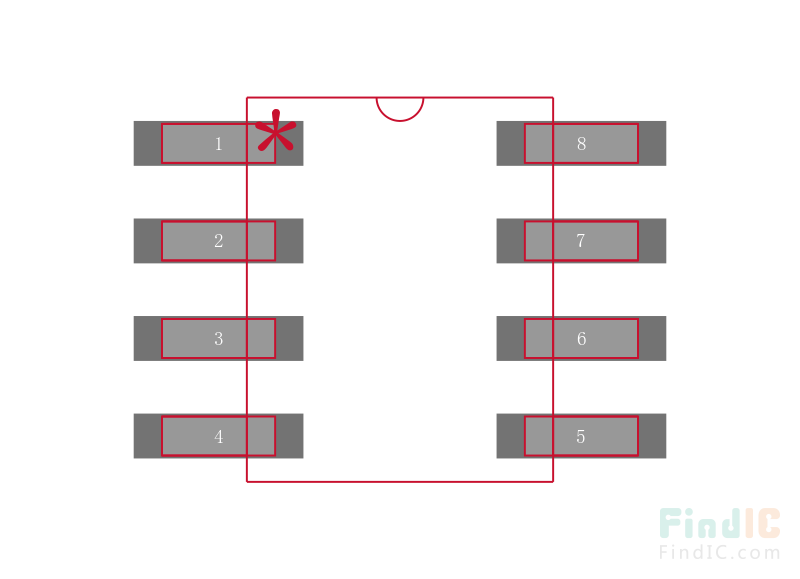

The TLE2072AID operates with a supply current of 3.1 mA and can handle an output current of up to 80 mA. It has a wide operating temperature range from -40°C to 85°C. The amplifier is housed in a compact SOIC-8 surface mount package with dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height.
Key electrical characteristics include a typical input offset voltage of 3.5 mV and an input bias current of 20 pA. The common mode rejection ratio is a minimum of 70 dB, and the input offset drift is 2.40 µV/K. This combination of features makes the TLE2072AID a versatile choice for various analog signal processing tasks.
9.4 MHz.
40 V/µs.
3.1 mA typical.
-40°C to 85°C.
SOIC-8.
2 circuits.
70 dB minimum.
