| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
81 pcs
|
81 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Output Current | |
| Package / Case | |
| SVHC Present | |
| Slew Rate |

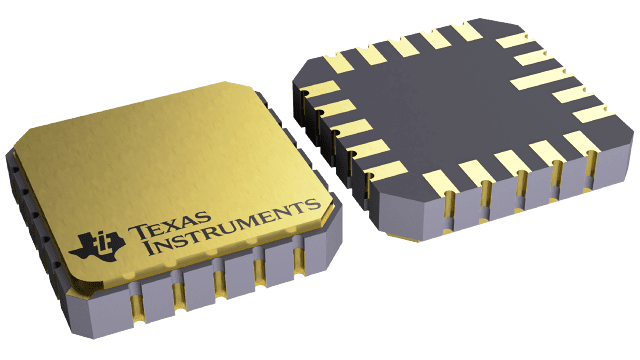

The TLE2064AMFKB from Texas Instruments is a military-grade, quad JFET-input operational amplifier designed for high-performance applications. It operates with a total supply voltage ranging from 7V to 36V, offering flexibility in power design.
Key electrical characteristics include a typical Gain Bandwidth Product (GBW) of 2 MHz and a slew rate of 3.4 V/µs. The device exhibits a low offset voltage of up to 4 mV and a typical input bias current of 60 pA. Its typical noise voltage at 1 kHz is 40 nV/√Hz, making it suitable for sensitive signal processing.
This operational amplifier is rated for military applications and operates across a wide temperature range of -55°C to 125°C. It is available in CFP, LCCC, and CDIP packages, supporting surface mount and through-hole mounting types.
The TLE2064AMFKB offers high output drive and low supply current, with a typical quiescent current of 0.312 mA per channel. Its FET input architecture provides excellent input impedance characteristics.
The TLE2064AMFKB has 4 channels.
The maximum total supply voltage for the TLE2064AMFKB is 36 V.
The typical Gain Bandwidth Product (GBW) for the TLE2064AMFKB is 2 MHz.
The typical slew rate for the TLE2064AMFKB is 3.4 V/µs.
The maximum offset voltage at 25°C for the TLE2064AMFKB is 4 mV.
The TLE2064AMFKB operates in the temperature range of -55°C to 125°C.
The TLE2064AMFKB is available in CFP, LCCC, and CDIP packages.
