Mfr Part #:

TLD5190QU

Mfr Name: Infineon

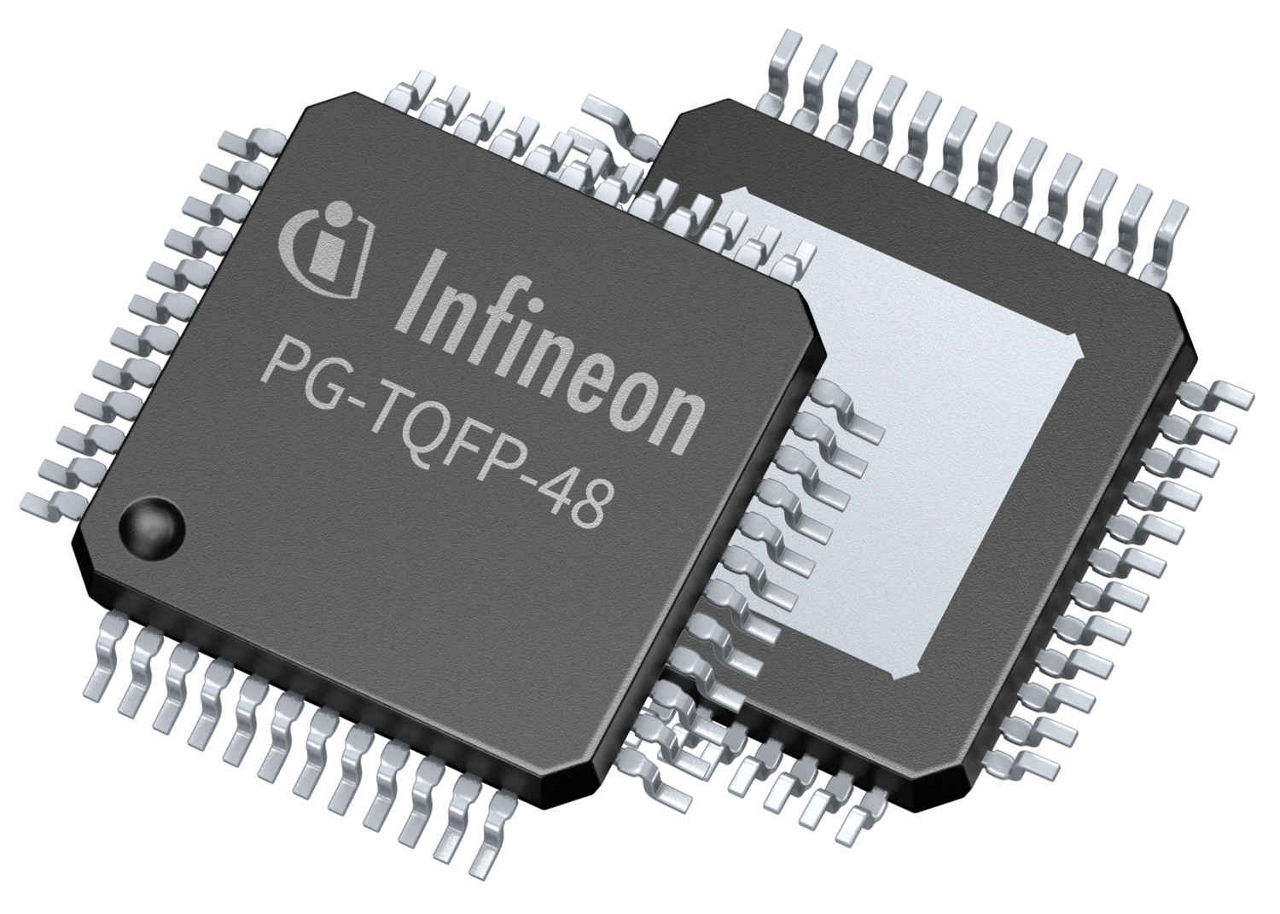

The Infineon TLD5190QU is an automotive-qualified H-Bridge DC/DC controller designed for high-power LED driving. It offers a wide input voltage range and high efficiency.

✓ Total Stock: 1,738 pcs

TLD5190QU Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,738 pcs On Request	1738 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TLD5190QU Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Dimming	Analog and PWM dimming
Efficiency	Up to 96%
Mounting Type	Surface Mount
Package / Case	PG-VQFN-48-31, PG-TQFP-48-9
Protection Features	Advanced protection features for device and load
SVHC Present	Not Present

View Similar Products (0)

TLD5190QU Description

Short technical summary and product information.

The Infineon TLD5190QU is a synchronous MOSFET H-Bridge DC/DC controller designed for high-power LED applications. It features a wide input voltage range from 4.5 V to 55 V and supports LED forward voltages from 2 V to 55 V. This device operates with a switching frequency adjustable between 200 kHz and 700 kHz, offering maximum efficiency up to 96%.

The TLD5190QU provides both constant current (LED) and constant voltage regulation, along with advanced protection features including overload, shorted load, open load, and overvoltage protection. It also includes diagnostic outputs for fault detection and enhanced dimming capabilities via analog and PWM signals. The device is EMC optimized with an auto Spread Spectrum feature and is available in PG-VQFN-48-31 or PG-TQFP-48-9 packages.

Designed for the harsh automotive environment, the TLD5190QU is AEC qualified. Its current mode regulation scheme ensures a stable control loop, and an adjustable soft-start feature limits inrush current and voltage overshoot during startup. The controller supports synchronization to an external clock source for improved system integration.

TLD5190QU Quick Information

Product Type: LED Driver

Canonical Name: TLD5190QU H-Bridge DC/DC Controller

Subcategory: LED Driver

TLD5190QU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TLD5190QU Features

Single inductor high power Buck-Boost controller.
Wide LED forward voltage range (2V to 55V).
Wide input voltage range (4.5V to 55V).
Maximum efficiency up to 96%.
Automotive AEC Qualified.

TLD5190QU Applications

Automotive LED headlight and daytime running light systems.
Adaptive lighting and matrix beam headlamps.
High-power LED driving in automotive exterior lighting.
Constant current LED driving with analog and PWM dimming.

TLD5190QU FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TLD5190QU?

The IC input voltage range is 4.5 V to 40 V, and the power input range is 4.5 V to 55 V.

What LED forward voltage range does the TLD5190QU support?

The LED forward voltage range is 2 V to 55 V.

What is the switching frequency range of the TLD5190QU?

The switching frequency is programmable from 200 kHz to 700 kHz.

What is the maximum efficiency of the TLD5190QU?

The maximum efficiency is up to 96%.

What packages are available for the TLD5190QU?

The TLD5190QU is available in PG-VQFN-48-31 and PG-TQFP-48-9 packages.

Is the TLD5190QU automotive qualified?

Yes, the TLD5190QU is AEC qualified for automotive applications.

What protection features does the TLD5190QU include?

Protection features include overload, shorted load, open load, output overvoltage, input overvoltage, input undervoltage, and thermal shutdown with autorestart.
