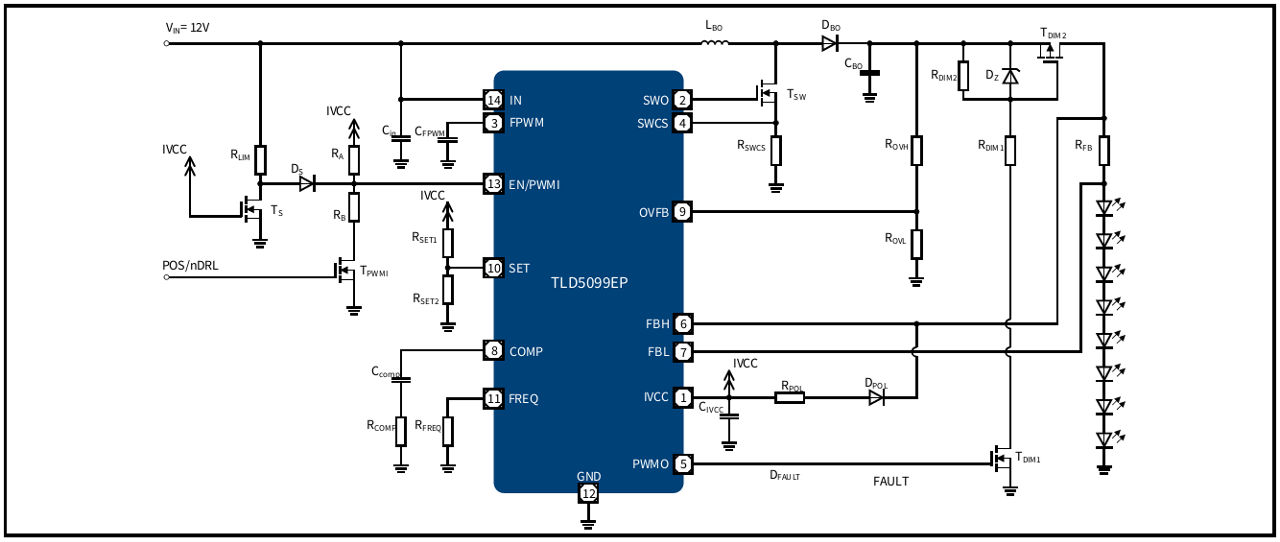

The Infineon TLD5099EP is a flexibly usable DC/DC boost controller IC with built-in diagnosis and protection features, specifically designed to drive LEDs. It supports fixed current and fixed voltage configurations in multiple topologies, including Boost, Buck, Buck-Boost, SEPIC, and Flyback, by simply adjusting external components.
This controller IC features a wide input voltage range from 4.5 V to 45 V and an adjustable switching frequency from 100 kHz to 500 kHz. It includes a pulse width modulator for dimming functions with reduced color shifting and a spread spectrum modulator to improve EMI performance. The TLD5099EP drives a low-side n-channel power MOSFET from an internal 5 V linear regulator.
Protection and diagnostic functions are integrated, such as open circuit and short-to-ground detection, output overvoltage protection, and overtemperature shutdown. The enable function reduces shutdown current consumption to less than 15 µA at 105°C. This IC is suited for use in harsh automotive environments.
Potential applications include automotive exterior and interior lighting, general illumination, and general-purpose current/voltage controlled DC/DC drivers.
The TLD5099EP has a wide input voltage range from 4.5 V to 45 V.
The switching frequency is adjustable in the range of 100 kHz to 500 kHz.
The TLD5099EP supports Boost, Buck, Buck-Boost, SEPIC, and Flyback topologies.
The shutdown current (IQ_OFF) is less than 15 µA at 105°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
