TLD2314ELXUMA1 The Infineon TLD2314ELXUMA1 is a 3-channel high-side current source LED driver IC. It is optimized to drive LEDs with output current up to 120 mA per channel.
Mfr Part #:

TLD2314ELXUMA1

Available from 2 distributors
Mfr Name: Infineon
Infineon
The Infineon TLD2314ELXUMA1 is a 3-channel high-side current source LED driver IC. It is optimized to drive LEDs with output current up to 120 mA per channel.
✓ Total Stock: 2,494 pcs
$ Price Range: $1.08

TLD2314ELXUMA1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,444 pcs
On Request
2444 pcs On Request 1 On Request On Request 21+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLD2314ELXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Voltage
View Similar Products (0)

TLD2314ELXUMA1 Description

Short technical summary and product information.

The LITIX™ Basic TLD2314ELXUMA1 from Infineon is a three-channel high-side driver IC designed for LED control applications. It features integrated output stages optimized to drive LEDs with an output current of up to 120 mA per channel.



This device supports PWM operation via the VS pin and offers adjustable output current through an external low-power resistor. It includes essential protective functions such as reverse polarity protection, overload protection, and undervoltage detection. Diagnostic functions include open load and short circuit to GND detection.

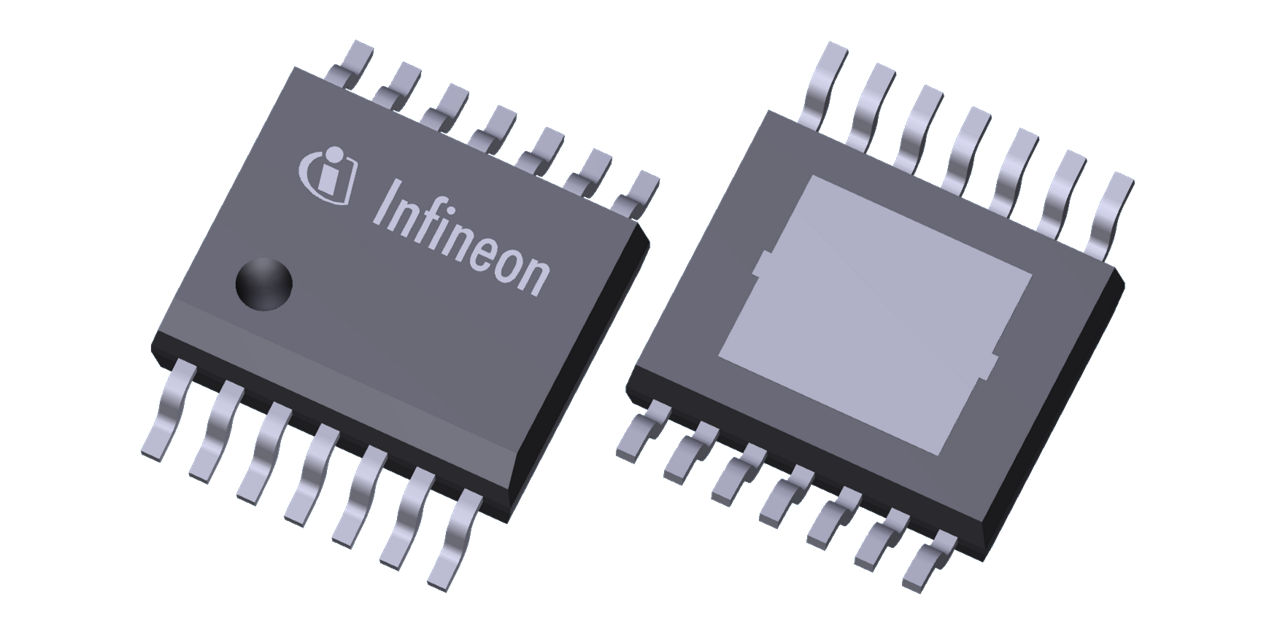

The TLD2314ELXUMA1 operates within a wide temperature range of -40°C to 150°C and is housed in a PG-SSOP-14 package with an exposed heatslug, suitable for surface mounting.



Typical applications include exterior LED lighting such as tail/brake lights, turn indicators, and position lights, as well as interior LED lighting for ambient lighting and dashboard illumination.

TLD2314ELXUMA1 Quick Information

Product Type: LED Driver
Series: LITIX™ Basic
Canonical Name: TLD2314ELXUMA1 3 Channel High-Side Current Source LED Driver
Subcategory: High-Side Current Source

TLD2314ELXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLD2314ELXUMA1 Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLD2314ELXUMA1 Features

  • 3-channel high-side current source driver.
  • Output current up to 120 mA per channel.
  • Wide operating voltage range 5.5V to 40V.
  • Supports PWM operation via VS pin.
  • Integrated protection and diagnostic functions.

TLD2314ELXUMA1 Applications

  • Exterior LED lighting applications.
  • Interior LED lighting applications.
  • Tail, brake, and turn indicator lights.
  • Ambient and dashboard illumination.

TLD2314ELXUMA1 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TLD2314ELXUMA1?

The operating voltage range is 5.5 V to 40 V.

What is the maximum output current per channel for the TLD2314ELXUMA1?

The maximum output current is 120 mA per channel.

What is the operating temperature range of the TLD2314ELXUMA1?

The operating temperature range is -40°C to 150°C.

What package type is the TLD2314ELXUMA1 supplied in?

The TLD2314ELXUMA1 is supplied in a PG-SSOP-14 package.
