| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,522 pcs
|
26522 pcs | On Request | 1 | On Request | On Request | 1046+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Type | |
| Voltage |
The TLC7733QDR from Texas Instruments is a micropower supply voltage supervisor IC. It is designed to provide reset control, primarily in microcomputer and microprocessor systems. This device features a precision voltage sensor with a threshold voltage of 2.93V and a temperature-compensated voltage reference.
The supervisor generates an automatic reset after a voltage drop and maintains the reset output active as long as the sense voltage remains below the threshold. An internal timer provides a delay of 1.1ms minimum to ensure proper system reset. The TLC7733QDR operates within a supply voltage range of 2V to 6V and has a maximum supply current of 16 µA.

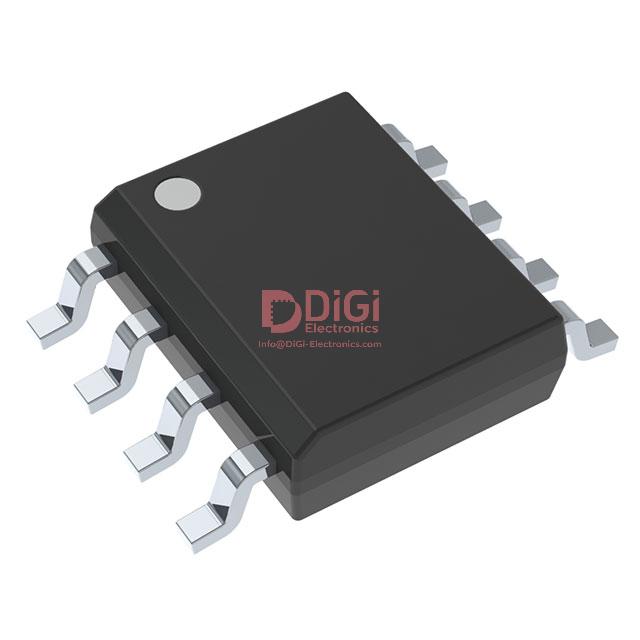

This supervisor IC is housed in an 8-SOIC package and is designed for surface mount applications. It operates across a wide temperature range of -40°C to 125°C (TA). The output stage features push-pull, totem pole design, supporting both active high and active low reset signals.
Key features include power-on reset generation, automatic reset after voltage drop, and a programmable delay time by an external capacitor. The TLC7733QDR is suitable for applications requiring reliable voltage monitoring and reset functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLC7733QDR operates within a supply voltage range of 2 V to 6 V.
The TLC7733QDR is available in an 8-SOIC package.
The TLC7733QDR has an operating temperature range of -40°C to 125°C (TA).
The TLC7733QDR is RoHS3 Compliant.
The threshold voltage for the TLC7733QDR is 2.93V.
The reset timeout for the TLC7733QDR is a minimum of 1.1ms.
The TLC7733QDR provides Push-Pull, Totem Pole output.
