| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,860 pcs
|
3860 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

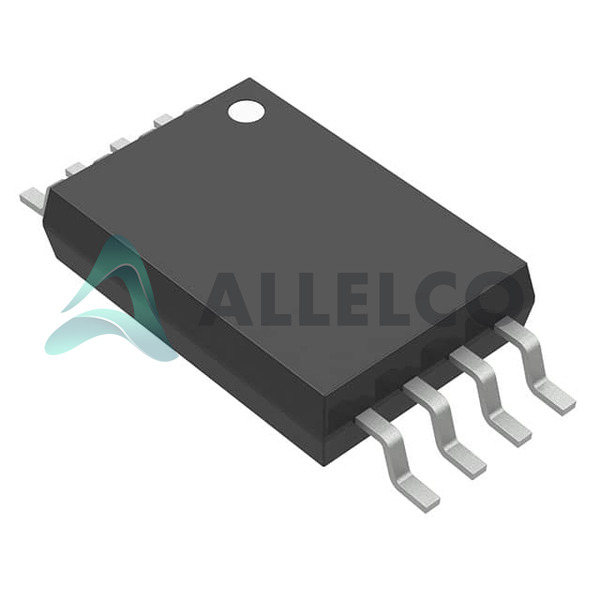

The TLC7725QDR from Texas Instruments is a micropower supply voltage supervisor designed for microcomputer and microprocessor systems. It features a supply voltage range of 2 V to 6 V and a maximum supply current of 16 µA. The device provides a precision voltage sensor with a temperature-compensated voltage reference and a defined RESET output from VDD ≥ 1 V.
This supervisor offers a reset timeout of 1.1ms minimum and supports active high/active low reset outputs. The output type is push-pull, totem pole. It monitors a single voltage and is suitable for applications requiring reliable power-on reset and voltage drop detection.
The TLC7725QDR is available in an 8-SOIC package and is designed for surface mount applications. Its operating temperature range is -40°C to 125°C (TA). This component is ideal for systems where stable power supply monitoring is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2V to 6V.
-40°C to 125°C.
8-SOIC surface-mount package.
1.1ms minimum.
2.25V.
Push-pull, totem pole, active high/active low.
1.
