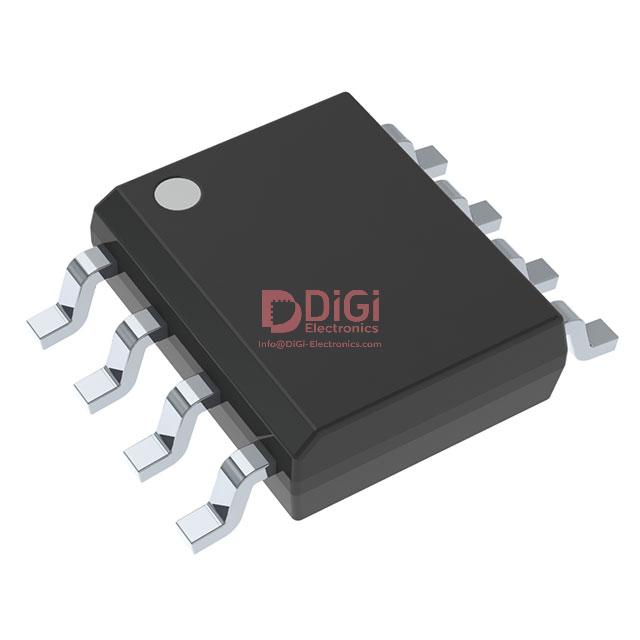

TLC7725IDR The Texas Instruments TLC7725IDR is a 1-channel supervisor IC designed for reset control in microcomputer systems. It features a 2.25V threshold and a 1.1ms reset timeout.
Mfr Part #:

TLC7725IDR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLC7725IDR is a 1-channel supervisor IC designed for reset control in microcomputer systems. It features a 2.25V threshold and a 1.1ms reset timeout.
✓ Total Stock: 45,757 pcs
$ Price Range: $0.75

TLC7725IDR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
42,047 pcs
On Request
42047 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,710 pcs
On Request
3710 pcs On Request 1 On Request On Request 1102+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLC7725IDR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Reset Timeout
Supplier Device Package
Type
Voltage
View Similar Products (0)

TLC7725IDR Description

Short technical summary and product information.

The TLC7725IDR from Texas Instruments is a micropower supply voltage supervisor IC providing essential reset control for microcomputer and microprocessor systems. It features a precision voltage sensor with a fixed threshold voltage of 2.25V. The device offers a reset timeout of 1.1ms, ensuring proper system reset after a voltage drop.



Designed for surface mounting, the TLC7725IDR comes in an 8-SOIC package. Its output stage is Push-Pull, Totem Pole, and it monitors a single voltage channel. The operating temperature range is -40°C to 85°C (TA), making it suitable for various environmental conditions. This supervisor IC operates within a supply voltage range of 2V to 6V and has a maximum supply current of 16 µA.



Key features include automatic reset generation after voltage drops, temperature-compensated voltage reference, and power-saving totem-pole outputs. The TLC7725 family is primarily used in applications requiring reliable power-on reset and undervoltage monitoring.

TLC7725IDR Quick Information

Product Type: Supervisor IC
Series: TLC7725
Canonical Name: TLC7725IDR Micropower Supply Voltage Supervisor
Subcategory: Supervisors

TLC7725IDR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLC7725IDR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLC7725IDR Features

  • Monitors a single voltage channel.
  • Features a 2.25V voltage threshold.
  • Provides a 1.1ms minimum reset timeout.
  • Surface mount 8-SOIC package.
  • Operates from -40°C to 85°C.

TLC7725IDR Applications

  • Essential for microcomputer reset control.
  • Monitors voltage drops automatically.
  • Ensures proper system reset timing.
  • Suitable for battery backup systems.

TLC7725IDR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the TLC7725IDR?

2V to 6V.

What is the package type of the TLC7725IDR?

8-SOIC (0.154", 3.90mm Width).

What is the operating temperature range?

-40°C to 85°C (TA).

What is the voltage threshold?

2.25V.

What is the reset timeout?

1.1ms minimum.

What output types are available?

Push-pull, totem pole with active high/active low reset.

How many voltages does it monitor?

1.
