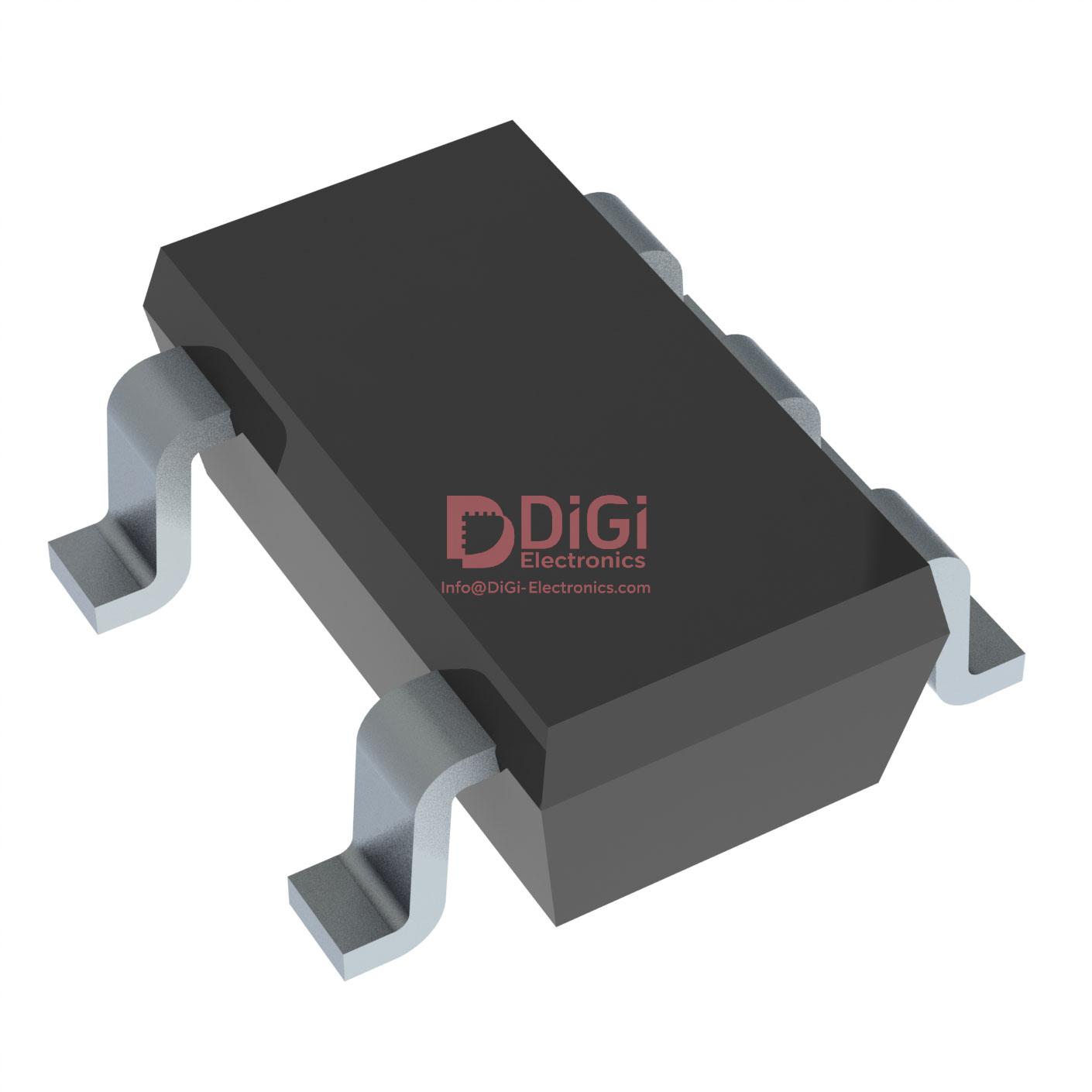

TLC7705QDR The Texas Instruments TLC7705QDR is a supervisor IC designed for microcomputer and microprocessor systems. It provides reset control with a supply voltage range of 2V to 6V.
Mfr Part #:

TLC7705QDR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLC7705QDR is a supervisor IC designed for microcomputer and microprocessor systems. It provides reset control with a supply voltage range of 2V to 6V.
✓ Total Stock: 99,110 pcs
$ Price Range: $0.75

TLC7705QDR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLC7705QDR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Operating Voltage
Output
Reset
Reset Timeout
SVHC Present
Supplier Device Package
Supply Current
Tape & Reel
Type
Voltage
View Similar Products (0)

TLC7705QDR Description

Short technical summary and product information.

The TLC7705QDR from Texas Instruments is a micropower supply voltage supervisor IC. It is primarily used in microcomputer and microprocessor systems to provide reset control.



This device features a supply voltage range of 2 V to 6 V and operates within a temperature range of -55°C to 125°C. It has a maximum supply current of 16 µA and offers power-saving totem-pole outputs. The supervisor has a precision voltage sensor with a temperature-compensated voltage reference and a defined RESET output from VDD ≥ 1 V.



The TLC7705QDR provides automatic reset generation after a voltage drop and supports power-down control for static RAM with battery backup. The delay time for the reset output can be programmed by an external capacitor. The device is available in an 8-SOIC package and is designed for surface mount applications.



Key specifications include a voltage threshold of 1.08V, a reset timeout of 1.1ms, and a nominal voltage of 4.55V. It monitors a single voltage and provides an active high/active low reset output.

TLC7705QDR Quick Information

Product Type: Supervisor IC
Canonical Name: TLC7705QDR Supervisor IC
Subcategory: Power Management ICs

TLC7705QDR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLC7705QDR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLC7705QDR Features

  • Micropower supply voltage supervisor IC.
  • Wide 2V to 6V supply voltage range.
  • Operates from -55°C to 125°C.
  • Features totem-pole outputs.
  • Available in 8-SOIC package.

TLC7705QDR Applications

  • Ideal for microcomputer systems.
  • Suitable for microprocessor systems.
  • Used for reset control functions.
  • Supports static RAM with battery backup.

TLC7705QDR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the TLC7705QDR?

2V to 6V.

What is the operating temperature range?

-55°C to 125°C.

What package does the TLC7705QDR come in?

8-SOIC surface mount package.

What is the voltage threshold of the TLC7705QDR?

1.08V.

What is the reset timeout?

1.1ms minimum.

How many voltages does the TLC7705QDR monitor?

1.

What is the maximum supply current?

16 µA.
