| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,888 pcs
|
8888 pcs | On Request | 1 | On Request | On Request | 0709+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Channels | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Type |

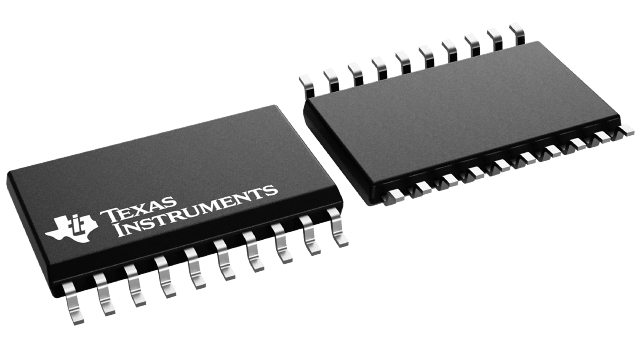

The Texas Instruments TLC7528C is a dual, 8-bit multiplying digital-to-analog converter (MDAC) designed for easy interfacing with microprocessors. It features separate on-chip data latches and exceptionally close DAC-to-DAC matching.
This CMOS device utilizes a common 8-bit input port for data transfer to either DAC, controlled by the DACA/DACB input. The load cycle mimics a random-access memory write cycle, simplifying integration with popular microprocessor buses and output ports. Segmenting the high-order bits helps minimize glitches during significant bit changes.
The TLC7528C operates within a temperature range of -25°C to 85°C and is available in a 20-pin SOIC package suitable for surface mounting. Its design includes features like fast control signaling for DSP applications and voltage-mode operation.
This converter is interchangeable with Analog Devices AD7528 and PMI PM-7528, making it a versatile choice for various digital-to-analog conversion tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLC7528C has an 8-bit resolution.
The TLC7528C is a dual channel device.
The TLC7528C operates from -25°C to 85°C.
The TLC7528C is available in a 20-pin SOIC package for surface mounting.
The standard package quantity for the TLC7528C is 20 units.
Yes, the TLC7528C features on-chip data latches.
