| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,449 pcs
|
23449 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The TLC549IDRG4 from Texas Instruments is an 8-bit Analog to Digital Converter (ADC) designed for data acquisition applications. It utilizes a Successive Approximation Register (SAR) architecture, providing an 8-bit resolution.
This ADC features a single-ended input and communicates via an SPI interface, making it suitable for integration into various digital systems. It supports a sampling rate of up to 40kSPS and operates within a temperature range of -40°C to 85°C. The device requires an external reference voltage and is configured as a Sample-and-Hold (S/H) ADC with a 1:1 ratio.

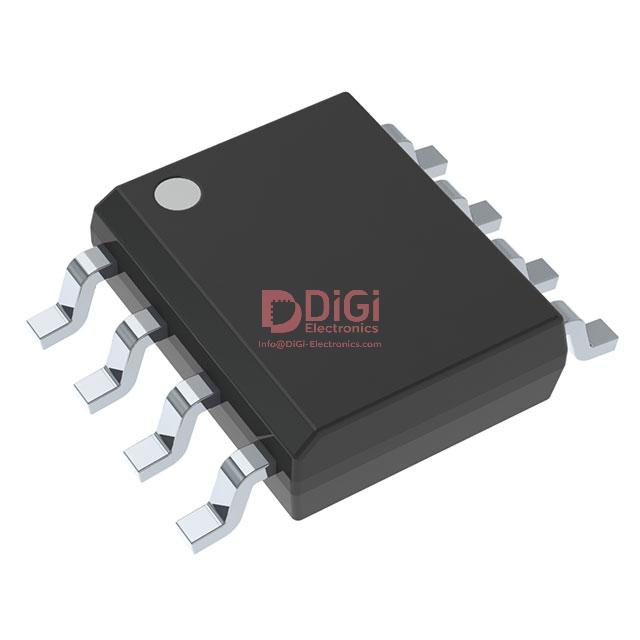

Packaged in an 8-SOIC form factor, the TLC549IDRG4 is designed for surface mounting. Its operating voltage range is between 3V and 6V. The component is classified under the Data Acquisition category, specifically as an Analog to Digital Converter (ADC).
This part is suitable for applications requiring conversion of analog signals to digital data with moderate speed and resolution. Its robust operating temperature range and standard packaging facilitate its use in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLC549IDRG4 has an 8-bit resolution.
The maximum sampling rate is 40kSPS.
The TLC549IDRG4 uses an SPI data interface.
The operating temperature range is -40°C to 85°C.
The TLC549IDRG4 is available in an 8-SOIC package.
The operating voltage range is 3V to 6V.
