| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,027 pcs
|
6027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
837 pcs
|
837 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |

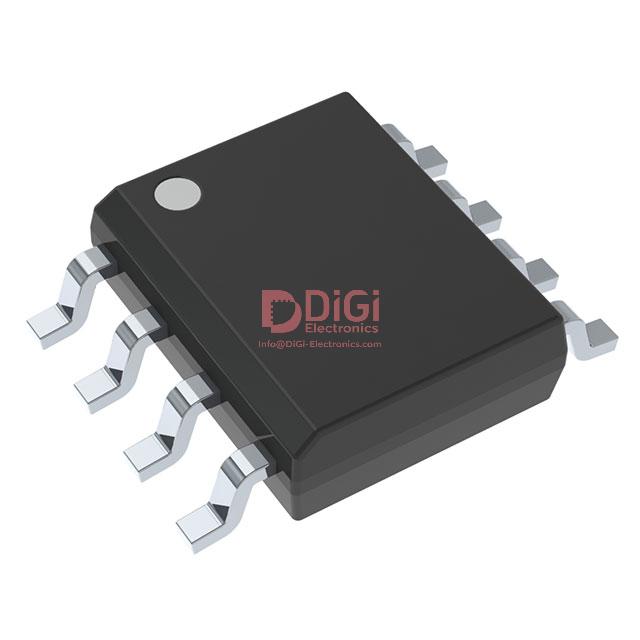

The Texas Instruments TLC2551ID is a high-performance, 12-bit, low-power, CMOS analog-to-digital converter (ADC). It operates from a single 5V supply and features a rail-to-rail analog input with a 500 kHz bandwidth.
This ADC utilizes a Successive Approximation Register (SAR) architecture and offers a sampling rate of up to 400 kSPS. The data interface is SPI compatible, allowing for direct connection to most microprocessors. Key electrical specifications include a typical operating current of 3.5 mA and an auto-power-down mode that reduces consumption to 8 µA.
The TLC2551ID is designed for applications requiring precise analog-to-digital conversion. Its compact 8-pin SOIC package and surface mount capability make it suitable for space-constrained designs. The operating temperature range is -40°C to 85°C, ensuring reliability in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLC2551ID has a resolution of 12 bits.
The maximum sampling rate for the TLC2551ID is 400kSPS.
The TLC2551ID uses an SPI interface.
The TLC2551ID operates on a single 5V supply.
The TLC2551ID operates within a temperature range of -40°C to 85°C.
The TLC2551ID is supplied in an 8-SOIC package.
