| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,032 pcs
|
2032 pcs | On Request | 1 | On Request | On Request | 2019+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Interface | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Resolution | |
| Storage Temperature | |
| Technology |

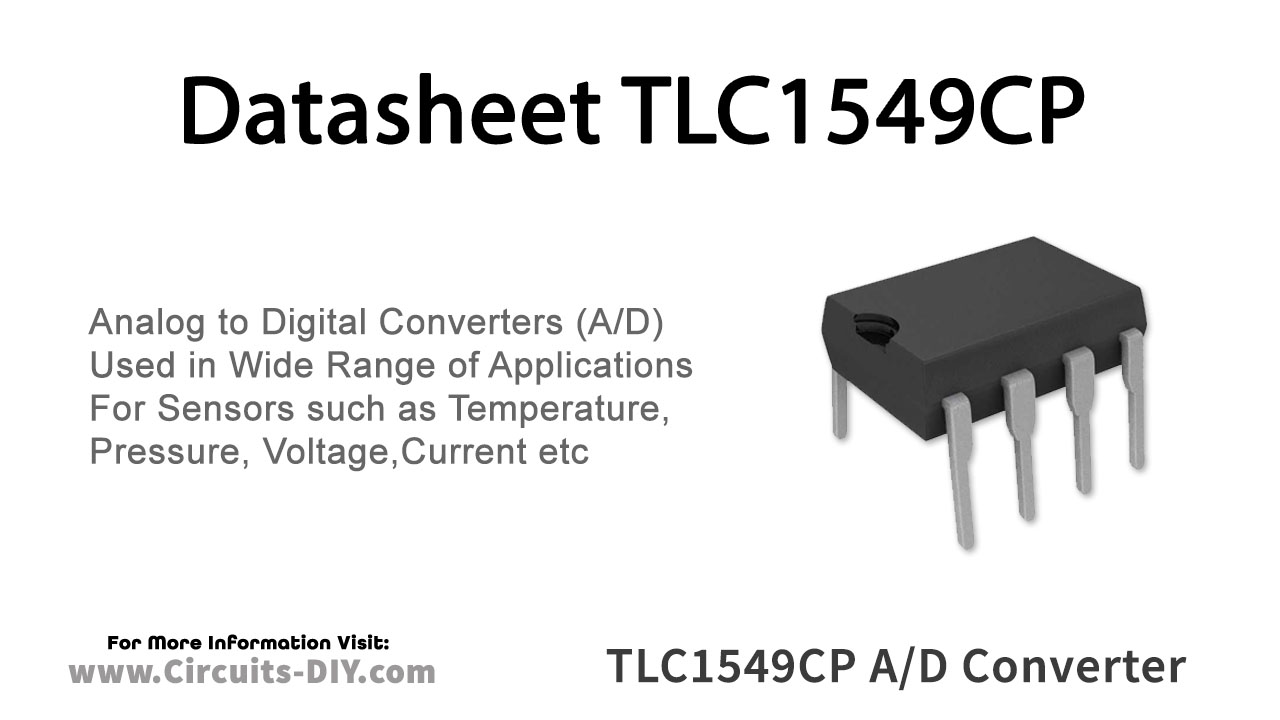

The TLC1549CP is a 10-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. It employs a switched-capacitor, successive approximation design, offering inherent automatic sample-and-hold functionality.
This ADC features a 3-wire serial interface, comprising chip select (CS), input-output clock (I/O CLOCK), and data output (DATA OUT), which simplifies integration with host processors. The device includes differential high-impedance reference inputs that allow for ratio-metric conversion and isolation from analog circuitry noise. Its switched-capacitor design ensures low error conversion across the operating temperature range.
Key specifications include a 10-bit resolution and a total unadjusted error of ±1 LSB maximum. The TLC1549CP is built using CMOS technology. It is suitable for applications requiring simplified analog input analysis.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLC1549CP has a resolution of 10 bits.
The total unadjusted error is ±1 LSB maximum.
The TLC1549CP is a switched-capacitor, successive approximation analog-to-digital converter.
It uses a 3-wire serial interface.
Yes, it has an inherent and automatic sample and hold function.
It features differential, high-impedance reference inputs.
The TLC1549CP is built with CMOS technology.
