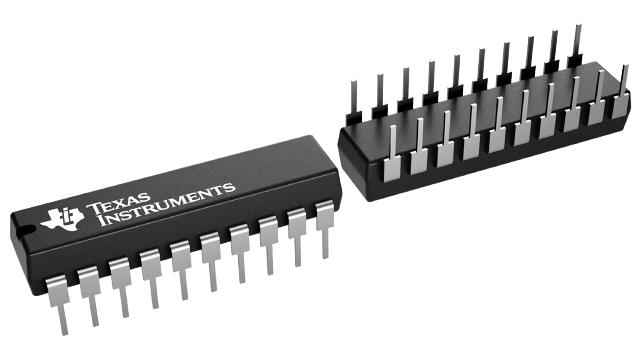

The TLC0820AI from Texas Instruments is an 8-bit Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. It utilizes a modified flash technique to achieve an 8-bit conversion in just 1.18 microseconds over temperature.
Key electrical specifications include a sampling rate of 392 kSPS and a conversion/access time of 2.5 us maximum over temperature in read mode. The device features an on-chip track-and-hold circuit with a 100 ns sample window, enabling it to convert continuous analog signals with slew rates up to 100 mV/us without external sampling components. It operates from a single 5V supply.
The TLC0820AI offers a parallel microprocessor interface with TTL-compatible 3-state output drivers, allowing for flexible interfacing with various microprocessors. It is available in a 20-pin PDIP package suitable for through-hole mounting.
This ADC is a direct replacement for National Semiconductor ADC0820C/CC and Analog Devices AD7820K/B/T.
8 bits.
392 kSPS.
Single 5-V supply.
PDIP-20 (20-pin PDIP).
Parallel microprocessor interface.
Yes, it includes an on-chip track-and-hold function.
1.18 µs.
