| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,500 pcs
|
22500 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Load Current | |
| Mounting Type | |
| PSRR | |
| Package / Case | |
| Quiescent Current | |
| SVHC Present |

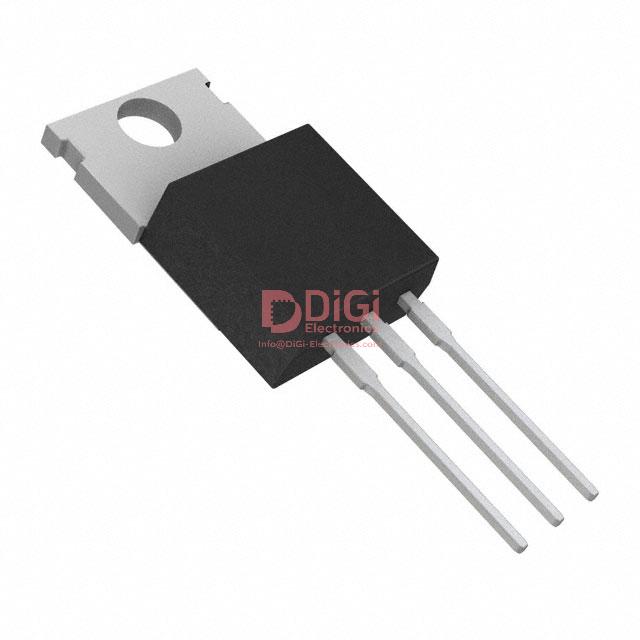

The TL780-15KCS is a positive-voltage linear regulator designed for reliable power management. It delivers a fixed 15V output with a high degree of accuracy, featuring a ±1% output tolerance at 25°C and ±2% over the full operating range.
This regulator is capable of supplying up to 1.5A of load current. Key design features include internal short-circuit current limiting and thermal shutdown, making the device robust against overload conditions. The input voltage can be as high as 35V, and it operates within a temperature range of 0°C to 125°C.
Packaged in a TO-220-3 configuration, the TL780-15KCS is suitable for through-hole mounting. Its design incorporates advanced layout techniques for excellent line, load, and thermal regulation, making it an improved version of the μA7800 series.
The output voltage is fixed at 15V.
The TL780-15KCS is available in a TO-220-3 through-hole package.
The operating temperature range is 0°C to 125°C.
The maximum output current is 1.5A.
The maximum input voltage is 35V.
The dropout voltage is typically 2V at 1A load.
The typical quiescent current is 6.5mA.
