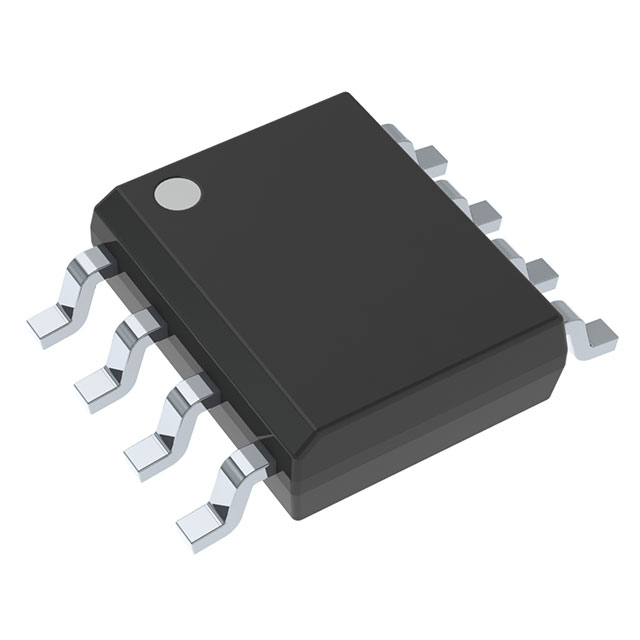

The TL7705ACDR from Texas Instruments is an integrated circuit supply-voltage supervisor designed for reset controllers in microcomputer and microprocessor systems. It monitors the supply voltage for undervoltage conditions and generates a reset signal when the voltage drops below a specified threshold.
Key electrical specifications include a minimum supply voltage of 3.5V and a maximum of 18V. The reset threshold voltage is typically 4.55V, with a minimum of 4.5V and a maximum of 4.6V. It offers a reset timeout of 1µs maximum propagation delay and monitors a single voltage channel.
This device operates within a temperature range of 0°C to 70°C. It is supplied in an 8-SOIC package with surface mount mounting type. The package dimensions are 6.20mm x 5.30mm. The TL7705ACDR provides complementary reset outputs and is suitable for applications requiring reliable power-on reset generation and automatic reset after voltage drops.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL7705ACDR operates from a supply voltage of 3.5V to 18V.
The nominal reset threshold voltage is 4.55V, with a minimum of 4.5V and maximum of 4.6V.
The operating temperature range is 0°C to 70°C.
The TL7705ACDR is available in an 8-SOIC surface-mount package.
The typical supply current is 1.8 mA.
The TL7705ACDR provides both active high and active low reset outputs.
