| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

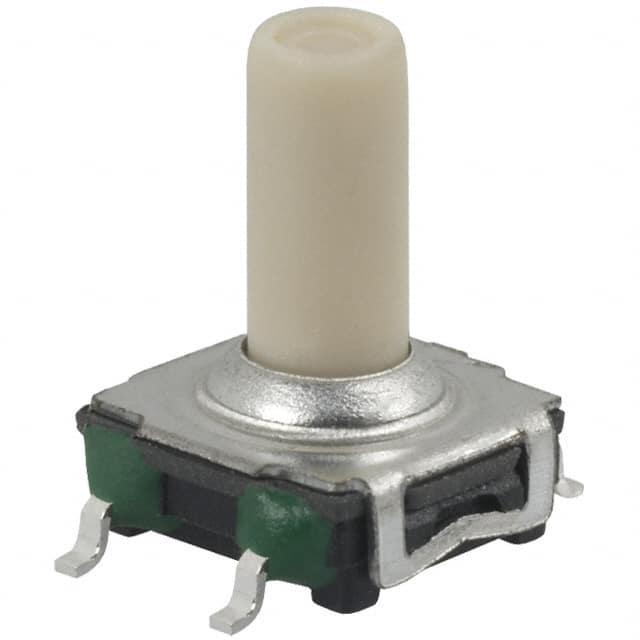

The E-Switch TL6120DF300QG is a tactile switch designed for surface mount applications. It operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a contact rating of 0.05A at 12VDC.
This switch features a standard actuator type with a vertical height of 10.00mm off the PCB. The operating force is specified at 300gf, and the switch travel is 0.50mm. The termination style is gull wing, and the outline dimensions are 7.40mm x 7.40mm. It is non-illuminated and designed for an operating temperature range of -40°C to 85°C.
The TL6120DF300QG is process sealed and offers multiple operating forces and actuator lengths. Its mechanical life is rated for 500,000 cycles at the specified 300gf actuation force. The switch is RoHS3 Compliant and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.05A @ 12VDC.
The operating force is 300gf.
It uses gull wing termination.
Yes, it is RoHS3 Compliant.
