| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Arrangement | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Dielectric Strength | |
| Electrical Rating | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Life Expectancy | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Travel |

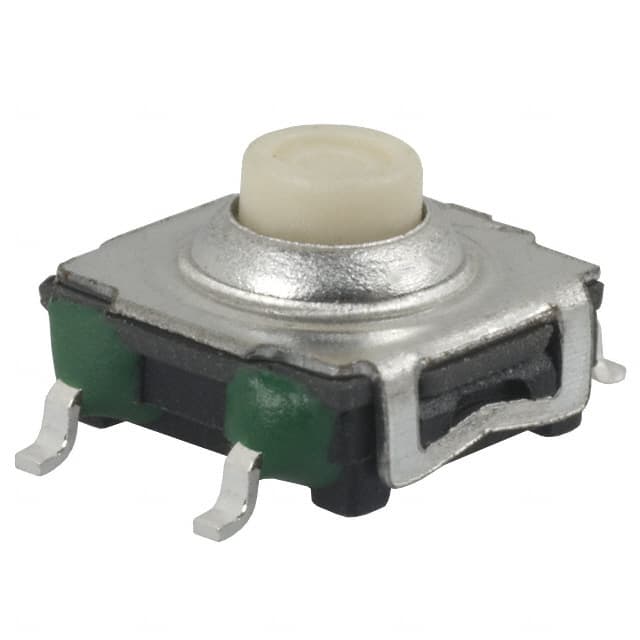

The E-Switch TL6120AF160QG is a tactile switch from the TL6120 series. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and is rated for 0.05A at 12VDC.
This switch has an operating force of 160gf and a travel of 0.50mm. The operating temperature range is -40°C to 85°C. It is designed for surface mounting with gull wing termination and has an actuator height of 4.70mm off the PCB.
The dimensions of the switch are 7.40mm x 7.40mm. It is process sealed and available in tape and reel packaging. The contact resistance is a maximum of 100mΩ initially, with an insulation resistance of 100 MΩ minimum at 100VAC. The dielectric strength is 250VAC for 1 minute.
Applications for this tactile switch include consumer electronics, instrumentation, and telecommunication devices. Its robust design and specific electrical ratings make it suitable for various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL6120AF160QG tactile switch is rated for 0.05A at 12VDC.
The operating temperature range for the TL6120AF160QG is -40°C to 85°C.
The contact arrangement is SPST-NO (Single Pole Single Throw Normally Open).
The operating force for the TL6120AF160QG is 160gf.
This switch is designed for surface mounting.
