| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Current Rating | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Termination Style | |
| Voltage Rating |

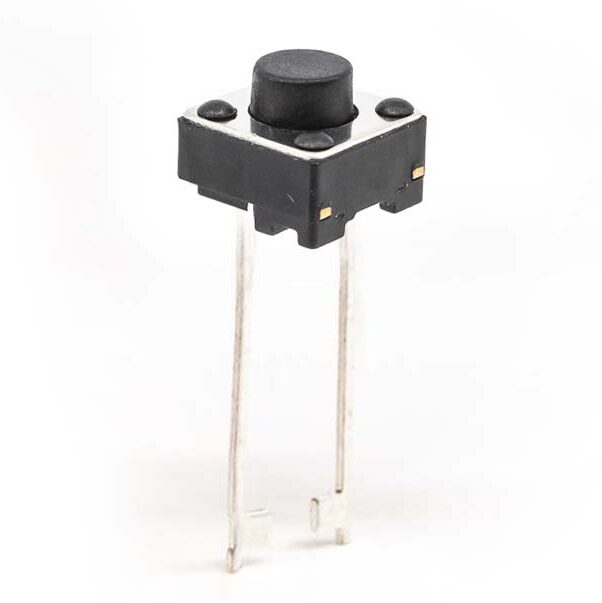

The TL59FF160Q is a tactile switch manufactured by CIT Relay and Switch, part of the TL59 Series. This switch features a through-hole mounting design with radial lead packaging, making it suitable for various electronic assemblies. It operates with a current rating of 50mA at 12VDC and has a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration with an Off-(On) function.
The TL59FF160Q has a standard actuator height of 5.00mm and a contact material of silver. The operating temperature range is from -20°C to 70°C, and it boasts a mechanical life of 100,000 cycles. This non-illuminated tactile switch is designed for applications in wearable and handheld devices, offering reliable performance in compact designs.
Key specifications include a 160gf operating force and a 6.20mm x 6.20mm outline. The through-hole termination type is PC Pin, facilitating easy integration into printed circuit boards. This series is also noted for its actuator height options, providing flexibility for different design requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL59FF160Q has a current rating of 50mA and a voltage rating of 12VDC.
The TL59FF160Q features a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The TL59FF160Q is a through-hole mount tactile switch.
The operating temperature range for the TL59FF160Q is -20°C to 70°C.
The TL59FF160Q has a mechanical cycle life of 100,000 cycles.
The actuator height for the TL59FF160Q is 5.00mm.
The operating force for the TL59FF160Q is 160gf.
