The Texas Instruments TL555I is a monolithic timing circuit fabricated using the LinCMOS process. This timer IC is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2 MHz. Its high input impedance allows for smaller timing capacitors compared to NE555 or LM555, enabling more accurate time delays and oscillations. The device features very low power consumption, with a typical power draw of 1-mW at 5V.
Key electrical characteristics include a wide single-supply operation range from 2V to 15V. The output is capable of swinging rail to rail and offers high output current capability, with a typical sink current of 100mA and a source current of 10mA. ESD protection exceeds 2000V per MIL-STD-883C.

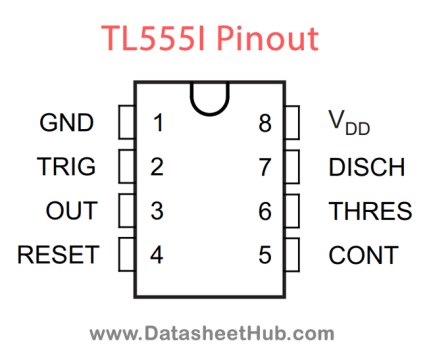

The TL555I is available in an SOIC 8-pin package, suitable for surface mount applications. It is functionally interchangeable with the NE555 and has the same pinout. The device is also available in automotive-qualified versions.
This timer IC is suitable for a wide range of applications requiring precise timing and oscillation control. Its low power consumption and broad operating voltage range make it a versatile component for various electronic designs.
The TL555I operates from a single supply voltage ranging from 2 V to 15 V.
The TL555I can operate at frequencies up to 2 MHz.
The TL555I has a typical output current sink capability of 100 mA.
The TL555I has a typical output current source capability of 10 mA.
The TL555I is available in an SOIC 8-pin package.
The TL555I is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the TL555I is 1 Unlimited.
