| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,000 pcs
|
26000 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Tolerance |

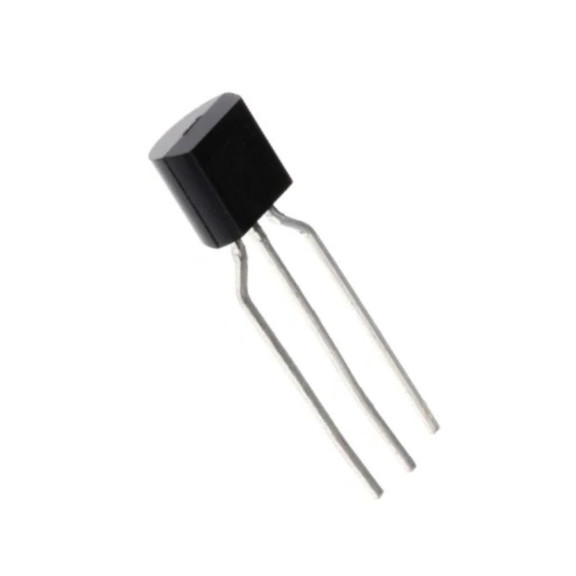

The UTC TL431G-T92-B is a versatile three-terminal adjustable regulator IC from Unisonic Technologies (UTC), functioning as a programmable precision voltage reference. It allows users to set output voltages anywhere between approximately 2.5V and 36V using two external resistors.
Key electrical specifications include a low dynamic output impedance of 0.2 Ohms and a sink current capability ranging from 1.0mA to 100mA. The device exhibits a typical equivalent full-range temperature coefficient of 50ppm/°C, ensuring stable operation over its specified temperature range.
Packaged in a compact TO-92-3 through-hole package, the TL431G-T92-B is suitable for various applications requiring precise voltage regulation. Its operating ambient temperature range is -40°C to +85°C. The IC is designed for applications such as power supply regulation, battery management systems, and as a stable reference for Analog-to-Digital Converters (ADCs).
This adjustable shunt regulator operates similarly to a Zener diode but provides enhanced versatility and accuracy. It is a cost-effective solution for maintaining stable output voltages in electronic circuits.
The adjustable output voltage range is from 2.5V to 36V.
It is available in a TO-92-3 package with through-hole mounting.
The operating ambient temperature range is -40°C to +85°C.
The typical temperature coefficient is 50 ppm/°C.
The sink current capability is from 1.0mA to 100mA.
The dynamic output impedance is typically 0.2 Ω.
