| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,425 pcs
|
43425 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Tape & Reel |
The TL431FDT from NXP Semiconductors is a three-terminal adjustable precision shunt regulator. It is designed for applications requiring a stable output voltage that can be set externally using two resistors, with a range from 2.495 V up to 36 V.
This device features a typical output current capability of 100 mA and a cathode current of 1 mA. It operates across a wide temperature range of -40 °C to 125 °C, making it suitable for various environmental conditions. The reference voltage tolerance is available in different grades, including 2% (standard), 1% (A-Grade), and 0.5% (B-Grade), with a typical temperature drift of 9 mV over 0 °C to 70 °C.
The TL431FDT is supplied in a compact SOT-23-3 surface-mount package. It is available in Tape & Reel or Cut Tape packaging options, facilitating automated assembly processes. This component is classified as an automotive-grade device, indicating its suitability for demanding automotive applications.
The output voltage range for the TL431FDT is from 2.495 V to 36 V, set by two external resistors.
The TL431FDT operates within a temperature range of -40 °C to 125 °C.

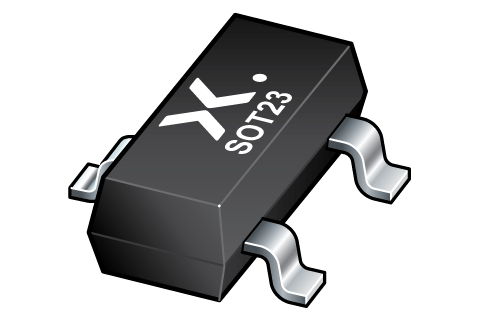

The TL431FDT is available in a SOT-23-3 package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
