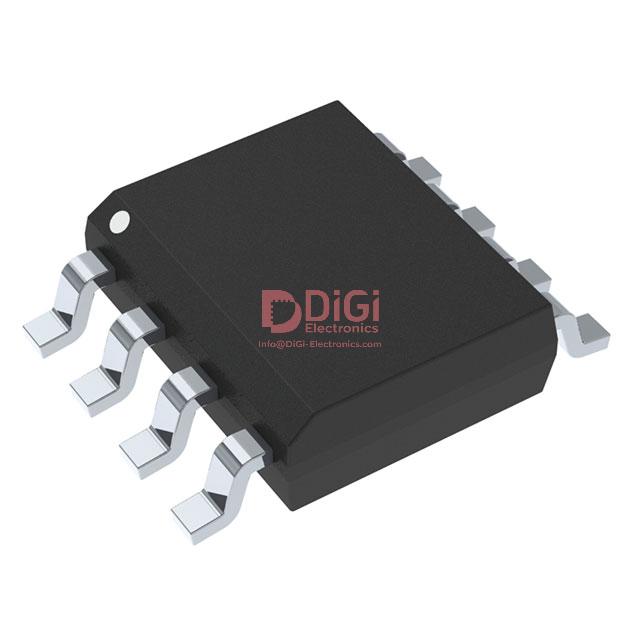

TL431ACDR2G The On Semiconductor TL431ACDR2G is an adjustable shunt voltage reference IC. It offers an output voltage range of 2.495V to 36V with a ±1% tolerance.
Mfr Part #:

TL431ACDR2G

Available from 6 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor TL431ACDR2G is an adjustable shunt voltage reference IC. It offers an output voltage range of 2.495V to 36V with a ±1% tolerance.
✓ Total Stock: 11,805 pcs
$ Price Range: $1.14

TL431ACDR2G Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL431ACDR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Output Type
Reference Type
Storage Temperature
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

TL431ACDR2G Description

Short technical summary and product information.

The On Semiconductor TL431ACDR2G is a versatile shunt voltage reference IC designed for various power management applications. It provides an adjustable output voltage ranging from a minimum of 2.495V up to a maximum of 36V, with a tight tolerance of ±1%. This device can handle an output current of up to 100 mA and features a low cathode current of 1 mA.



The TL431ACDR2G operates within a temperature range of 0°C to 70°C (TA) and is housed in a surface-mount 8-SOIC package. Its adjustable nature makes it suitable for a wide array of voltage regulation circuits where precise and stable reference voltages are required.



This component is packaged in Tape & Reel (TR) for automated assembly processes. The surface mount design facilitates integration into compact electronic systems.

TL431ACDR2G Quick Information

Product Type: Shunt Voltage Reference IC
Canonical Name: On Semiconductor TL431ACDR2G Shunt Voltage Reference IC
Subcategory: Shunt Voltage Reference

TL431ACDR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TL431ACDR2G Estimated Pricing

Qty Low High
1+ $1.14 $1.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL431ACDR2G Features

  • Adjustable shunt voltage reference IC.
  • Output voltage from 2.495V to 36V.
  • ±1% voltage tolerance.
  • 100 mA maximum output current.
  • Surface mount 8-SOIC package.

TL431ACDR2G Applications

  • Used in adjustable power supply circuits.
  • Ideal for precision voltage monitoring.
  • Suitable for switching power supply feedback.
  • Common in battery charger control loops.

TL431ACDR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the TL431ACDR2G?

The output voltage is adjustable from 2.495V to 36V.

What is the package type of the TL431ACDR2G?

It comes in an 8-SOIC surface mount package.

What is the operating temperature range?

0°C to 70°C.

What is the voltage tolerance?

±1%.

What is the temperature coefficient?

50ppm/°C.

What is the minimum cathode current?

1 mA.

What is the maximum cathode current?

100 mA.
