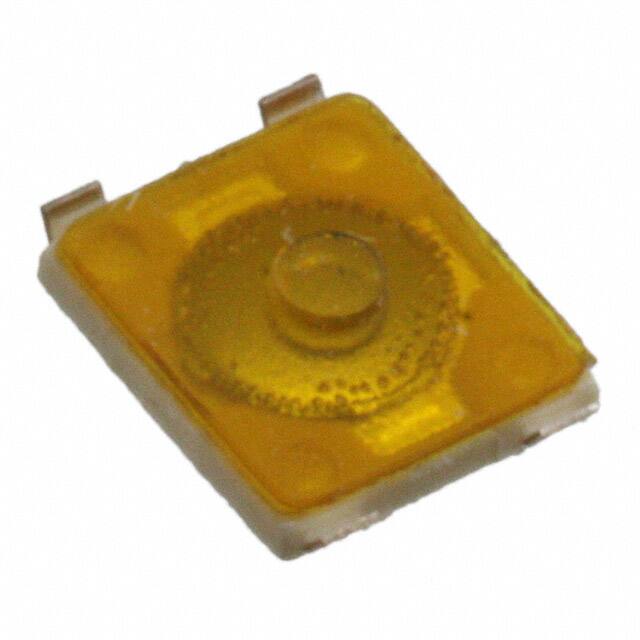

TL3700AF100QG The E-Switch TL3700AF100QG is a tactile switch with a SPST-NO circuit and a contact rating of 0.02A at 15VDC. It features a surface mount termination style.
Mfr Part #:

TL3700AF100QG

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL3700AF100QG is a tactile switch with a SPST-NO circuit and a contact rating of 0.02A at 15VDC. It features a surface mount termination style.
✓ Total Stock: 77,709 pcs
$ Price Range: $0.52

TL3700AF100QG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
67,709 pcs
On Request
67709 pcs On Request 1 On Request On Request 18+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL3700AF100QG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Dimensions
Illumination
Insulation Resistance
Lead Spacing
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

TL3700AF100QG Description

Short technical summary and product information.

The E-Switch TL3700AF100QG is an ultra-miniature tactile switch designed for various electronic applications. It features a SPST-NO circuit configuration and a momentary (Off-Mom) switch function.



With dimensions of 3.0mm x 2.6mm x 0.65mm, this switch offers a compact footprint suitable for space-constrained designs. It has an electrical rating of 0.02A at 15VDC and an operating force of 100gf. The termination style is Gull Wing, and it is designed for surface mounting.



The switch operates within a temperature range of -40°C to 85°C and boasts a life expectancy of up to 100,000 cycles. Its ultra-miniature size and reliable performance make it suitable for markets such as audio/visual, computer peripherals, consumer electronics, handheld devices, medical equipment, and telecommunications.

TL3700AF100QG Quick Information

Product Type: Tactile Switch
Series: TL3700
Canonical Name: E-Switch TL3700AF100QG Tactile Switch
Subcategory: Tactile Switches

TL3700AF100QG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL3700AF100QG Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL3700AF100QG Features

  • Ultra-miniature tactile switch design.
  • SPST-NO circuit configuration.
  • 0.02A @ 15VDC electrical rating.
  • Surface mount with Gull Wing termination.
  • Compact 3.0mm x 2.6mm x 0.65mm dimensions.

TL3700AF100QG Applications

  • Suitable for audio and visual equipment.
  • Used in computer peripheral devices.
  • Ideal for consumer electronics.
  • Applicable in handheld devices.
  • Can be used in medical equipment.

TL3700AF100QG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TL3700AF100QG tactile switch?

The operating voltage for the TL3700AF100QG tactile switch is 15VDC.

What is the package type for the TL3700AF100QG?

The TL3700AF100QG is a surface mount tactile switch.

What is the operating temperature range for the TL3700AF100QG?

The operating temperature range for the TL3700AF100QG is -40°C to 85°C.

Is the TL3700AF100QG RoHS compliant?

The TL3700AF100QG is RoHS3 Compliant.

What is the circuit configuration of the TL3700AF100QG?

The TL3700AF100QG has a SPST-NO circuit configuration.

What is the contact rating of the TL3700AF100QG tactile switch?

The contact rating is 0.02A at 15VDC.

What are the dimensions of the TL3700AF100QG tactile switch?

The dimensions are 3.0mm (W) x 2.6mm (L) x 0.65mm (H).
