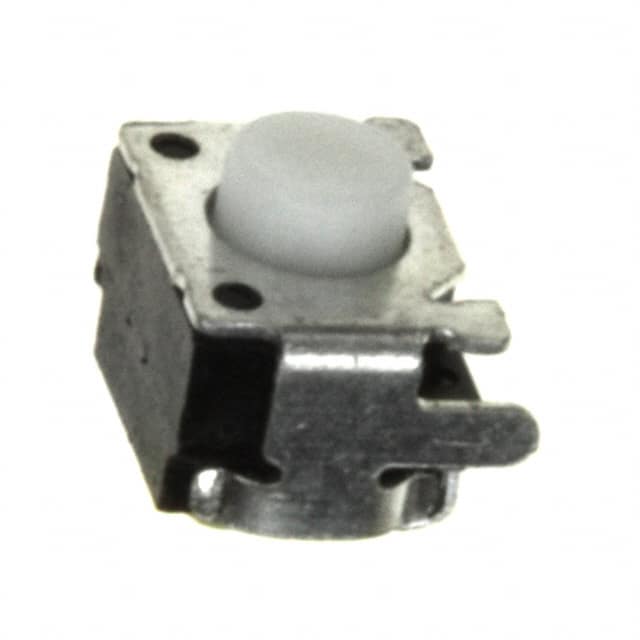

TL3340AF160QG The E-Switch TL3340AF160QG is a subminiature, SMT right-angle tactile switch. It features a 160gf actuation force and a 50mA @ 12VDC contact rating.
Mfr Part #:

TL3340AF160QG

Available from 5 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL3340AF160QG is a subminiature, SMT right-angle tactile switch. It features a 160gf actuation force and a 50mA @ 12VDC contact rating.
✓ Total Stock: 57,505 pcs
$ Price Range: $0.52

TL3340AF160QG Available from 5 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
40,000 pcs
On Request
40000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,942 pcs
On Request
9942 pcs On Request 1 On Request On Request 19+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,500 pcs
On Request
5500 pcs On Request 1 On Request On Request 2136+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1,663 pcs
On Request
1663 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL3340AF160QG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuation Force
Actuator Length, Right Angle
Actuator Material
Actuator Orientation
Actuator Type
Circuit
Contact Material
Contact Rating @ Voltage
Contact Resistance
Housing Material
Illumination
Insulation Resistance
Lead Spacing
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

TL3340AF160QG Description

Short technical summary and product information.

The E-Switch TL3340AF160QG is a subminiature tactile switch designed for surface mount applications with a right-angle orientation. It offers reliable dome technology and a strong tactile force, making it suitable for various electronic devices.



Key electrical specifications include a contact rating of 50mA at 12VDC and a SPST-NO circuit configuration. The switch has a mechanical and electrical life expectancy of 100,000 cycles. It operates within a temperature range of -35°C to +85°C.



The TL3340AF160QG features a gull wing termination style and a 3.40mm actuator length. Its compact outline of 4.00mm x 3.30mm makes it ideal for space-constrained designs. Materials include a PPA housing and actuator, with copper alloy terminals and stainless steel contacts.



This tactile switch is commonly used in telecommunications, consumer electronics, audio/visual equipment, medical devices, and computer peripherals.

TL3340AF160QG Quick Information

Product Type: Tactile Switch
Series: TL3340
Canonical Name: E-Switch TL3340 Series Tactile Switch
Subcategory: Tactile Switch

TL3340AF160QG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL3340AF160QG Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL3340AF160QG Features

  • Subminiature SMT right-angle tactile switch.
  • 160gf actuation force for tactile feedback.
  • 50mA @ 12VDC contact rating.
  • 100,000 cycle mechanical and electrical life.
  • Gull wing termination for surface mounting.

TL3340AF160QG Applications

  • Ideal for telecommunications equipment.
  • Used in consumer electronics devices.
  • Suitable for audio and visual systems.
  • Applicable in medical equipment designs.
  • Common in computer peripherals.

TL3340AF160QG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TL3340AF160QG tactile switch?

The operating voltage for the TL3340AF160QG is 12VDC.

What is the operating temperature range of the TL3340AF160QG?

The operating temperature range is -35°C to +85°C.

What is the RoHS status of the TL3340AF160QG?

The RoHS status is RoHS3 Compliant.

What is the actuation force for the TL3340AF160QG tactile switch?

The actuation force is 160gf.

What type of termination does the TL3340AF160QG use?

The TL3340AF160QG uses gull wing termination.

What is the circuit configuration of the TL3340AF160QG?

The circuit configuration is SPST-NO (Single Pole Single Throw - Normally Open).
