| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
175 pcs
|
175 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

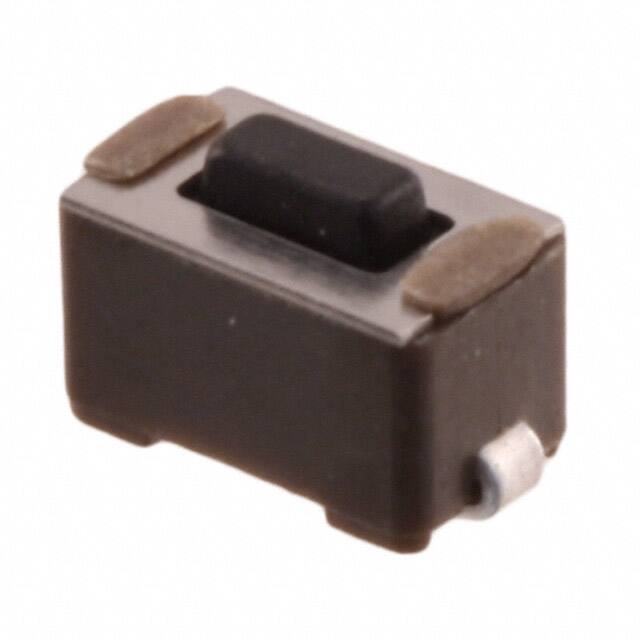

The E-Switch TL3302AF180QJ is a tactile switch from the TL3302 series, designed for surface mount applications. This component features a SPST-NO circuit configuration and a contact rating of 50mA at 12VDC.
Key specifications include an operating force of 180gf and a rectangular button actuator type. The switch has an actuator height of 4.30mm off the PCB and an outline dimension of 6.00mm x 3.50mm. It operates within a temperature range of -20°C to 70°C.
This tactile switch is suitable for various applications requiring reliable momentary contact. Its surface mount termination and compact outline make it ideal for integration into compact electronic devices and assemblies. The switch function is Off-Mom, providing a momentary action upon actuation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL3302AF180QJ has a current rating of 50mA at 12VDC.
The TL3302AF180QJ features a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The operating force for the TL3302AF180QJ is 180gf.
The TL3302AF180QJ operates within a temperature range of -20°C to 70°C.
The TL3302AF180QJ is a Surface Mount type switch.
