| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

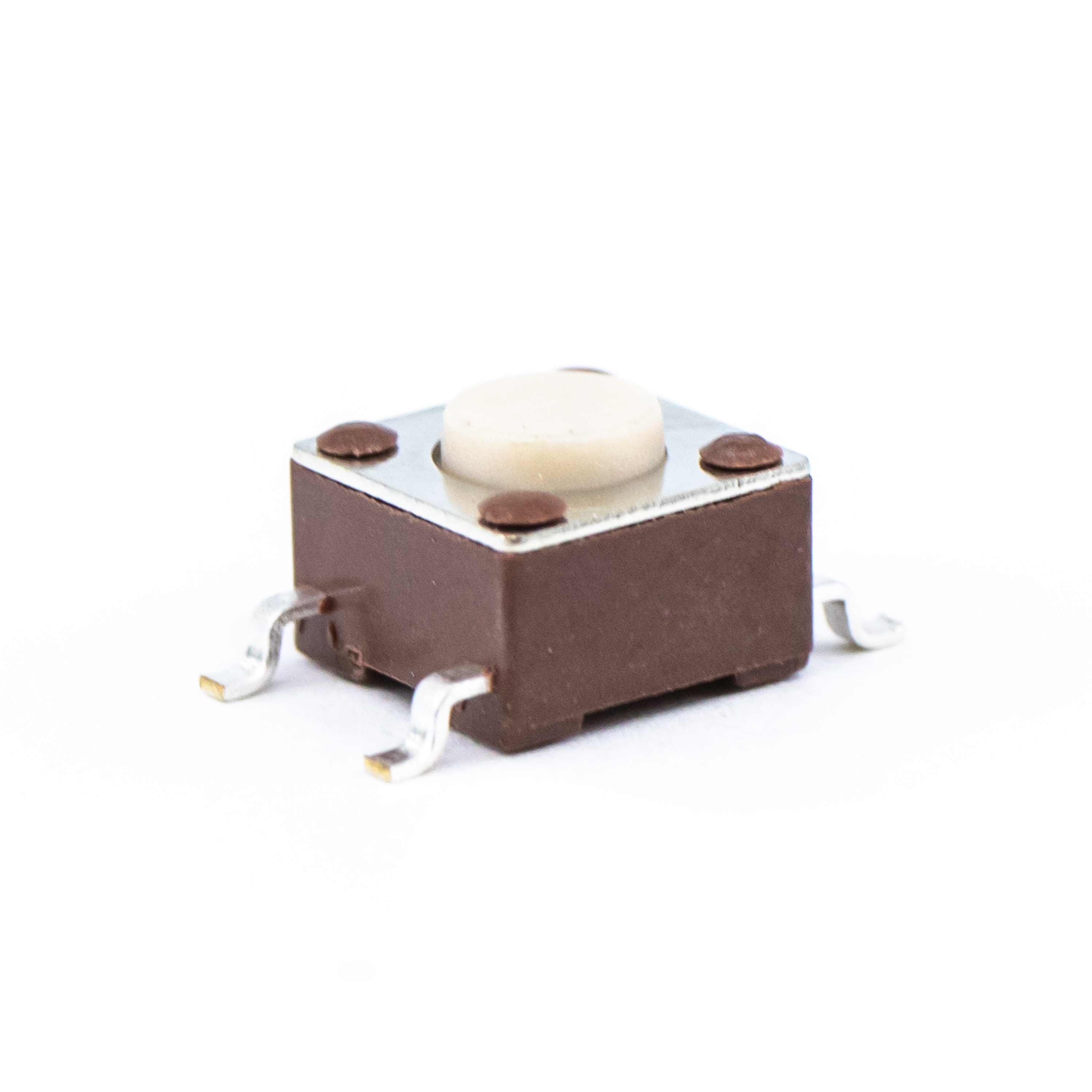

The E-Switch TL3301NF160QG is a tactile switch designed for surface mount applications. It features a standard actuator with top actuation and a gull wing termination style.
This switch operates with an SPST-NO circuit and has a contact rating of 50mA at 12VDC. The operating force is specified at 160gf, with an actuator travel of 0.15mm to 0.45mm. The contact resistance is a maximum of 100 milliohms initially, and the switch is rated for a mechanical and electrical life of at least 100,000 cycles.
The TL3301NF160QG has an outline dimension of 6.00mm x 6.00mm and an actuator height of 4.30mm off the PCB. It is designed for a wide operating temperature range, typically from -40°C to 85°C.
Packaged in tape and reel with 1,200 pieces per reel, this switch is suitable for automated assembly processes. Its robust construction and reliable performance make it suitable for various industrial and consumer electronics applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 50mA at 12VDC.
The operating force is 160gf.
It has an SPST-NO (Single Pole Single Throw - Normally Open) circuit.
It is supplied in tape and reel packaging, with 1,200 pieces per reel.
