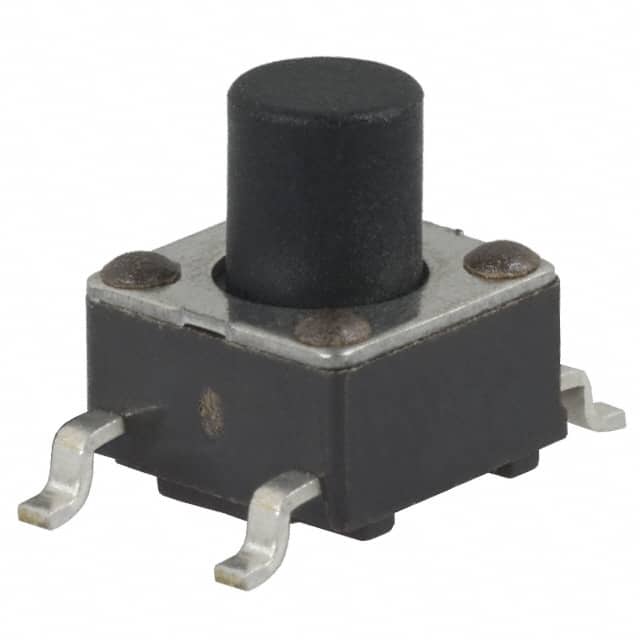

TL3301FF160QG The E-Switch TL3301FF160QG is a tactile switch featuring a 160gf operating force and a 0.05A @ 12VDC contact rating. It is designed for SMD/SMT mounting.
Mfr Part #:

TL3301FF160QG

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL3301FF160QG is a tactile switch featuring a 160gf operating force and a 0.05A @ 12VDC contact rating. It is designed for SMD/SMT mounting.
✓ Total Stock: 472 pcs
$ Price Range: $0.52

TL3301FF160QG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
472 pcs
On Request
472 pcs On Request 1 On Request On Request 2046+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL3301FF160QG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Height
Illumination
Lead Spacing
Length
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
Width
View Similar Products (0)

TL3301FF160QG Description

Short technical summary and product information.

The E-Switch TL3301FF160QG is a tactile switch with a SPST-NO circuit configuration. It operates with a force of 160gf and has a contact rating of 0.05A at 12VDC.



This switch features a non-illuminated, standard actuator type with a height of 7mm off the PCB. The dimensions of the switch are 6mm x 6mm, and it utilizes a gull wing termination style for surface mount applications.



Designed for reliability, the TL3301FF160QG has a mechanical life of 100,000 cycles. It operates within a temperature range of -20°C to 70°C and is supplied in reel or cut tape packaging.

TL3301FF160QG Quick Information

Product Type: Tactile Switch
Series: TL3301
Canonical Name: E-Switch TL3301FF160QG Tactile Switch
Subcategory: Tactile Switch

TL3301FF160QG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL3301FF160QG Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL3301FF160QG Features

  • Tactile switch with SPST-NO circuit.
  • 160gf operating force required.
  • 0.05A @ 12VDC contact rating.
  • SMD/SMT mounting with gull wing termination.
  • 6mm x 6mm dimensions, 7mm actuator height.

TL3301FF160QG Applications

  • Suitable for surface mount designs.
  • Used in electronic control interfaces.
  • Ideal for compact device integration.
  • Requires specific actuator force.

TL3301FF160QG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TL3301FF160QG?

The operating voltage for the TL3301FF160QG is 12 VDC.

What is the operating temperature range of this tactile switch?

The operating temperature range is -20°C to 70°C.

What is the contact rating of the TL3301FF160QG?

The contact rating is 0.05A @ 12VDC.

How is the TL3301FF160QG mounted?

It is designed for Surface Mount (SMD/SMT) with a Gull Wing termination style.

What is the operating force for this E-Switch tactile switch?

The operating force is 160gf.

What are the dimensions of the TL3301FF160QG?

The switch has dimensions of 6mm x 6mm with an actuator height of 7mm.

What is the expected lifespan of the TL3301FF160QG?

The expected lifespan is 100,000 cycles.
