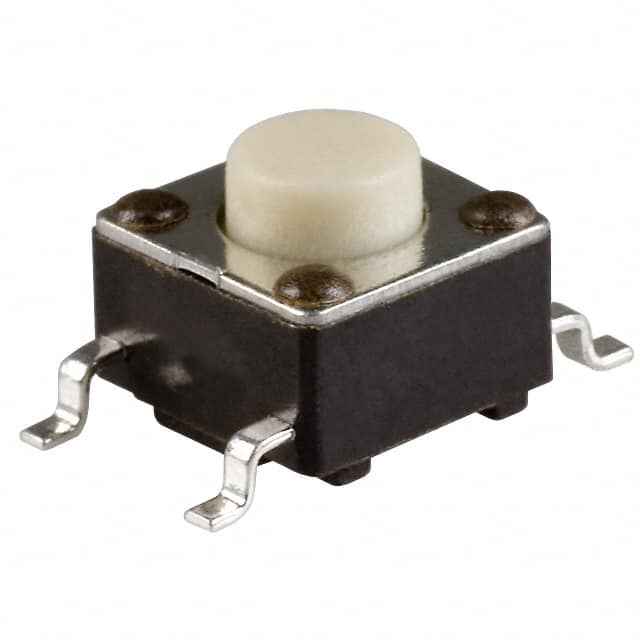

TL3301AF260QG The E-Switch TL3301AF260QG is a tactile switch featuring a SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for surface mounting with gull wing termination.
Mfr Part #:

TL3301AF260QG

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL3301AF260QG is a tactile switch featuring a SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for surface mounting with gull wing termination.
✓ Total Stock: 1,915 pcs
$ Price Range: $0.52

TL3301AF260QG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,220 pcs
On Request
1220 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
695 pcs
On Request
695 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL3301AF260QG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Lead Spacing
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

TL3301AF260QG Description

Short technical summary and product information.

This E-Switch TL3301AF260QG is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is rated for 0.05A at 12VDC and requires an operating force of 260gf. The switch features a standard, non-illuminated actuator and is designed for top actuation.



The component has a surface mount termination style with gull wing leads, suitable for automated assembly processes. Its dimensions are 6.00mm by 6.00mm, with an actuator height of 5.00mm off the PCB. The operating temperature range is from -20°C to 70°C.



This tactile switch is compliant with RoHS3 standards and has an MSL 1 rating, indicating unlimited moisture sensitivity. It is suitable for various electronic applications requiring a momentary contact switch.

TL3301AF260QG Quick Information

Product Type: Tactile Switch
Canonical Name: E-Switch TL3301AF260QG Tactile Switch
Subcategory: Tactile Switch

TL3301AF260QG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL3301AF260QG Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL3301AF260QG Features

  • SPST-NO tactile switch configuration.
  • Rated for 0.05A at 12VDC.
  • Requires 260gf operating force.
  • Surface mount with gull wing termination.
  • Standard, non-illuminated actuator.

TL3301AF260QG Applications

  • Ideal for momentary switch functions.
  • Suitable for compact PCB designs.
  • Used in consumer electronics.
  • Applicable in industrial controls.

TL3301AF260QG FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this tactile switch?

The operating temperature range is -20°C to 70°C.

What is the contact rating for the E-Switch TL3301AF260QG?

The contact rating is 0.05A at 12VDC.

What is the RoHS status of this component?

This component is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the TL3301AF260QG?

The MSL is 1 Unlimited.
