| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Illumination | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

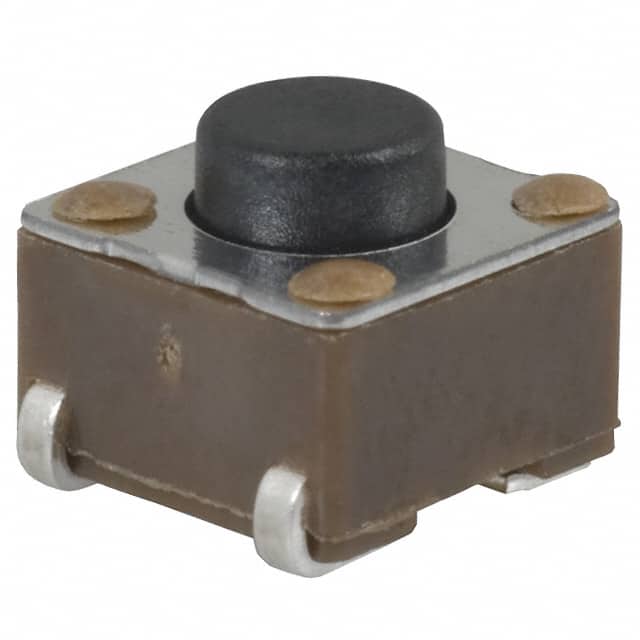

The E-Switch TL3301AF160QJ is a tactile switch from the TL3301 Series, designed for surface mount applications. This non-illuminated switch has a 6.00mm x 6.00mm outline and a top-actuated standard actuator.
Key electrical specifications include a current rating of 0.05A at 12VDC and a SPST-NO circuit configuration. The switch operates with a force of 160gf and features a J lead termination style. The actuator height off the PCB is 5.00mm.
With an operating temperature range of -20°C to 70°C, this tactile switch is suitable for various industrial and consumer electronics applications. It is packaged in tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the TL3301AF160QJ is 12VDC.
The operating force required for the TL3301AF160QJ is 160gf.
The operating temperature range for the TL3301AF160QJ is -20°C to 70°C.
The TL3301AF160QJ has a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The current rating for the TL3301AF160QJ is 0.05A at 12VDC.
