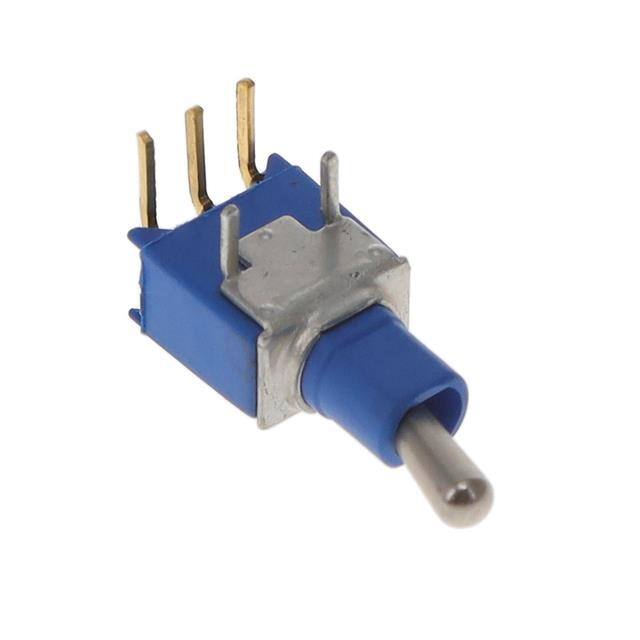

TL32W000000 The APEM Inc. TL32W000000 is an SPDT toggle switch with a 20V voltage rating and 0.4VA current capacity. It features an On-Mom switching function and epoxy sealed terminals.
Mfr Part #:

TL32W000000

Available from 2 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. TL32W000000 is an SPDT toggle switch with a 20V voltage rating and 0.4VA current capacity. It features an On-Mom switching function and epoxy sealed terminals.
✓ Total Stock: 31 pcs
$ Price Range: $0.75

TL32W000000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL32W000000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Lead Style
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

TL32W000000 Description

Short technical summary and product information.

The APEM Inc. TL32W000000 is a Single Pole Double Throw (SPDT) toggle switch designed for various applications. It operates with a voltage rating of 20V and a current capacity of 0.4VA (AC/DC).



The switch features an On-Mom function, meaning it is active only while the actuator is held in position. The actuator is a standard round type with a length of 5.30mm. The terminals are PC pins, facilitating through-hole mounting at a right angle.



Environmental specifications include an operating temperature range of -30°C to 85°C. The switch is also noted for epoxy sealed terminals, providing protection against environmental contaminants. Mounting is achieved via through-hole, right-angle configuration.



This toggle switch is suitable for applications requiring a reliable SPDT switching action within the specified electrical and environmental parameters. Its through-hole mounting and specific actuator type make it adaptable to various PCB designs.

TL32W000000 Quick Information

Product Type: Toggle Switch
Canonical Name: APEM Inc. TL32W000000 SPDT Toggle Switch
Subcategory: Toggle Switch

TL32W000000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL32W000000 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL32W000000 Features

  • SPDT circuit configuration.
  • Rated for 20V and 0.4VA.
  • On-Mom switching function.
  • Through-hole, right-angle mounting.
  • Epoxy sealed terminals for protection.

TL32W000000 Applications

  • Suitable for general purpose switching.
  • Used in control panel applications.
  • Ideal for PCB mounted circuits.
  • Requires manual actuator engagement.

TL32W000000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the TL32W000000 toggle switch?

The TL32W000000 toggle switch has a voltage rating of 20V.

What is the current rating of the TL32W000000 toggle switch?

The TL32W000000 toggle switch has a current rating of 0.4VA (AC/DC).

What is the operating temperature range for the TL32W000000 toggle switch?

The TL32W000000 toggle switch operates between -30°C and 85°C.

What type of circuit does the TL32W000000 toggle switch use?

The TL32W000000 toggle switch uses an SPDT (Single Pole Double Throw) circuit.

What is the switching function of the TL32W000000 toggle switch?

The TL32W000000 toggle switch has an On-Mom switching function.

How is the TL32W000000 toggle switch mounted?

The TL32W000000 toggle switch is mounted through hole, at a right angle.
