| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

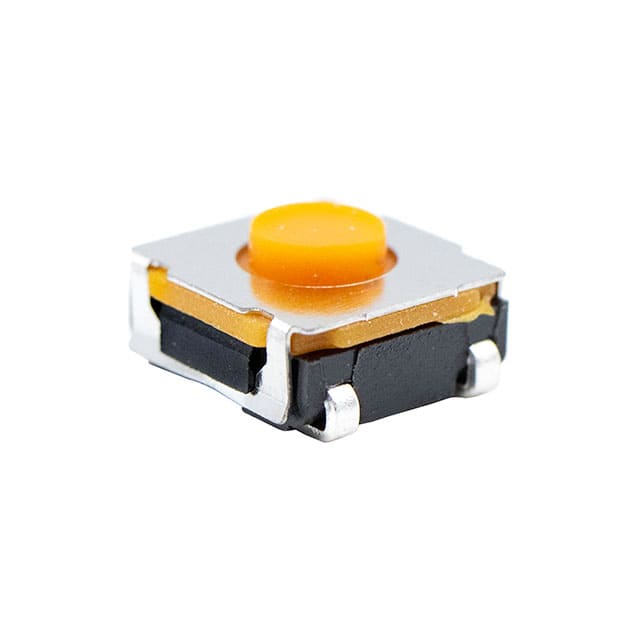

This E-Switch TL3145AF350QJ is a tactile switch featuring a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is designed for surface mount applications and offers a contact rating of 0.05A at 12VDC. The switch is top actuated with a standard actuator type and has a vertical actuator height of 3.50mm.
With an outline of 6.45mm x 6.45mm, this component is built for durability, boasting an IP67 rating for dust-tight and waterproof performance. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions. The switch function is Off-Mom, and it has a mechanical life of 3,000,000 cycles.
The TL3145AF350QJ series switch is RoHS3 Compliant and REACH Unaffected. It is packaged in Tape & Reel (TR) or Cut Tape (CT) with a standard package quantity of 1500 units. This component is ideal for applications requiring reliable momentary switching in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The TL3145AF350QJ uses a Surface Mount type.
The TL3145AF350QJ is RoHS3 Compliant.
The MSL is 1 Unlimited.
The contact rating is 0.05A @ 12VDC.
The mechanical life is 3,000,000 cycles.
