| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,500 pcs
|
22500 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Efficiency | |
| Features | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TL2575-ADJIKV is an adjustable 1A step-down switching voltage regulator designed for efficient power conversion. It supports an adjustable output voltage range from 1.23V to 37V, with fixed options available for 3.3V, 5V, 12V, and 15V.
This regulator operates with an input voltage range of 4.75V to 40V and a maximum output current of 1A. It features a typical switching frequency of 52kHz and offers high efficiency up to 88%. Key electrical features include overcurrent protection and TTL shutdown capability.

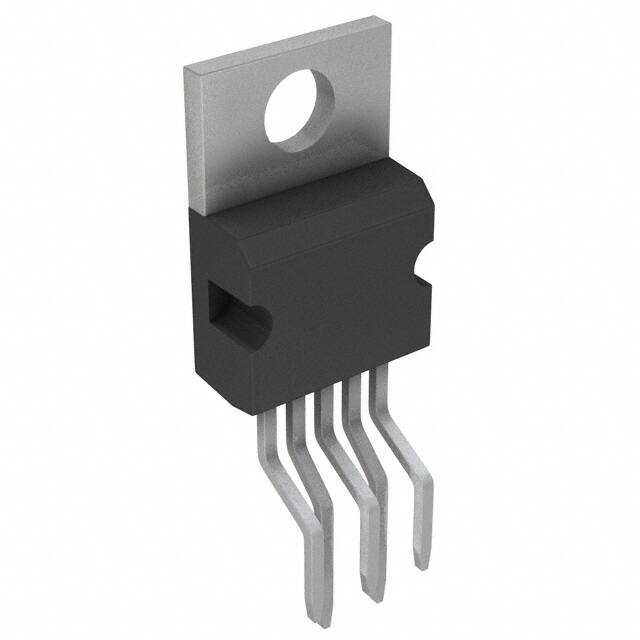

The TL2575-ADJIKV is packaged in a TO-220-5 form factor with through-hole mounting. It operates within a temperature range of -40°C to 125°C (TJ). This component is suitable for various power management applications requiring reliable step-down voltage conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable output voltage range is from 1.23V to 37V.
The maximum output current is 1A.
The input voltage range is from 4.75V to 40V.
The typical switching frequency is 52kHz.
The operating temperature range is -40°C to 125°C (TJ).
It is in a TO-220-5 package with formed leads for through-hole mounting.
