| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

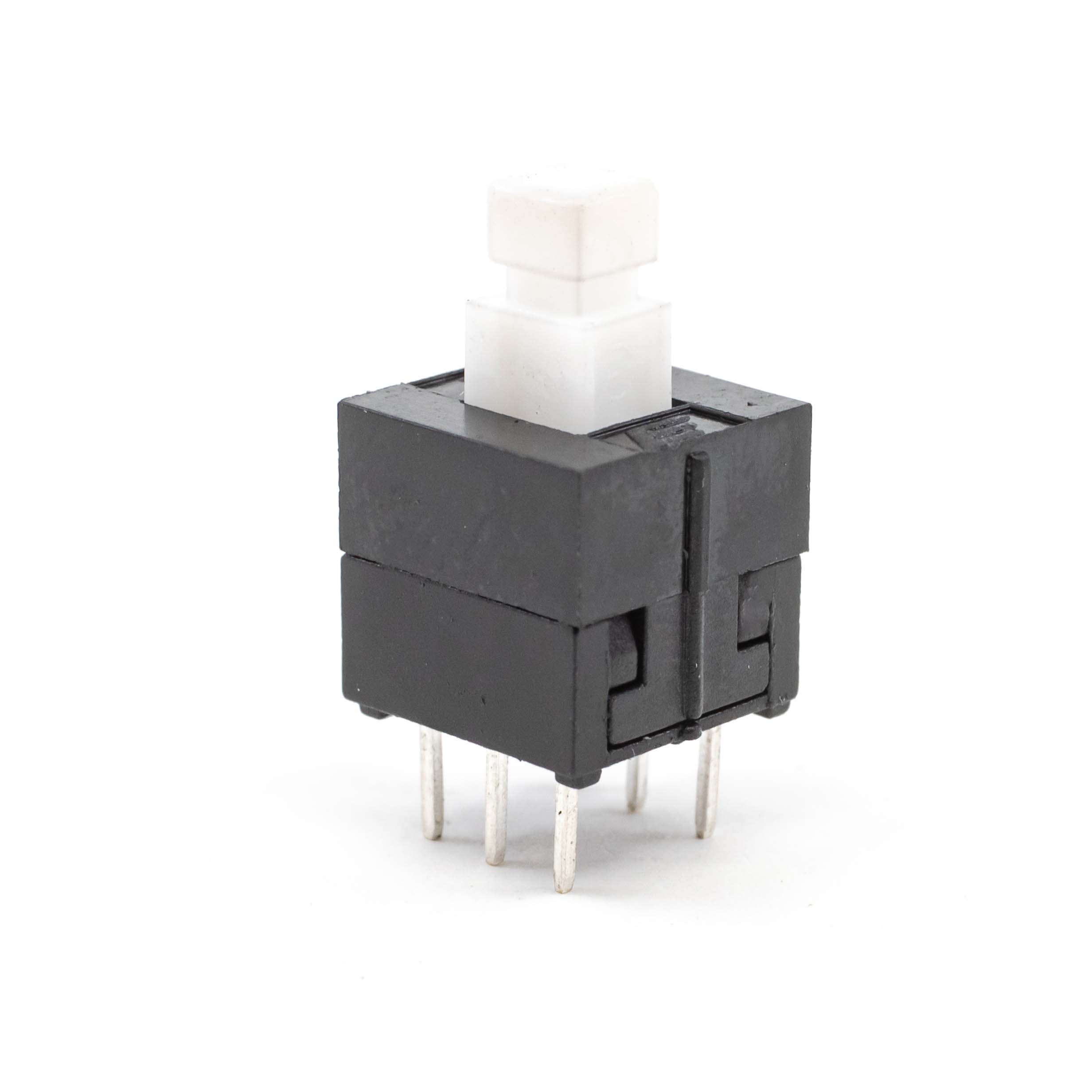

The E-Switch TL2201EEYA is a subminiature pushbutton switch designed for various applications. It offers a DPDT circuit configuration with an On-On function, suitable for low-power on/off designs.
Key electrical specifications include a contact rating of 100mA at 30VDC, a contact resistance of 100mΩ maximum, and an insulation resistance of 100MΩ minimum. The switch boasts a dielectric strength of 500 VAC and an electrical life expectancy of 10,000 cycles.
Constructed with a PBT housing, Acetal actuator and cover, and silver-plated phosphor bronze contacts, this switch is built for durability. It features PC Pin termination and through-hole mounting, making it suitable for printed circuit board integration. The operating temperature range is -20°C to 70°C.
Applications for the TL2201 series include telecommunications, networking, computers/servers, performance audio, and instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 100mA at 30VDC.
The electrical life expectancy is 10,000 cycles.
The operating temperature range is -20°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The circuit configuration is DPDT.
The termination style is PC Pin.
