| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,362 pcs
|
3362 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | 1BA60DW | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| With False Start Bit Detection | |
| With Modem Control |
The TL16C450FN is an Asynchronous Communications Element (UART) transceiver manufactured by Texas Instruments. This device is designed for standard asynchronous communication, supporting serial data transmission with programmable characteristics.
Key features include a programmable baud rate generator capable of dividing any input reference clock, full double buffering to eliminate synchronization needs, and independent receiver clock input. The serial interface supports 5- to 8-bit characters, even/odd/no parity, and 1, 1.5, or 2 stop bits. It operates with a baud rate from DC to 256 Kbit/s and includes false start bit detection.
Internal diagnostic capabilities such as loopback controls for fault isolation and simulation of errors like parity and framing errors are integrated. The device also controls modem functions including CTS, RTS, DSR, DTR, RI, and DCD. It is designed to easily interface with most popular microprocessors and serves as a faster plug-in replacement for the National Semiconductor NS16C450.
The TL16C450FN comes in a 44-PLCC surface mount package. It operates within a temperature range of 0°C to 70°C and requires an operating voltage of 4.75V to 5.25V.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.23 | $3.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the TL16C450FN is between 4.75V and 5.25V.

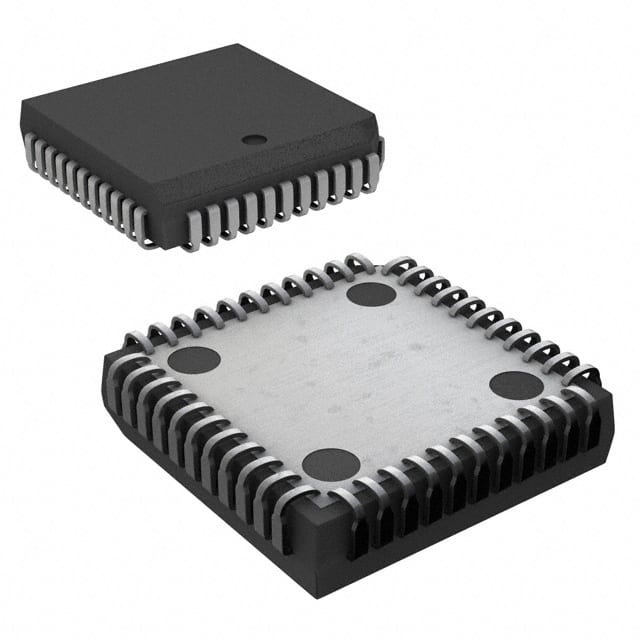

The TL16C450FN is available in a 44-PLCC (16.58x16.58) package, which is a surface mount type.
The TL16C450FN operates within a temperature range of 0°C to 70°C.
Yes, the TL16C450FN supports false start bit detection.
The TL16C450FN supports modem control functions including CTS\, RTS\, DSR\, DTR\, RI\, and DCD\.
